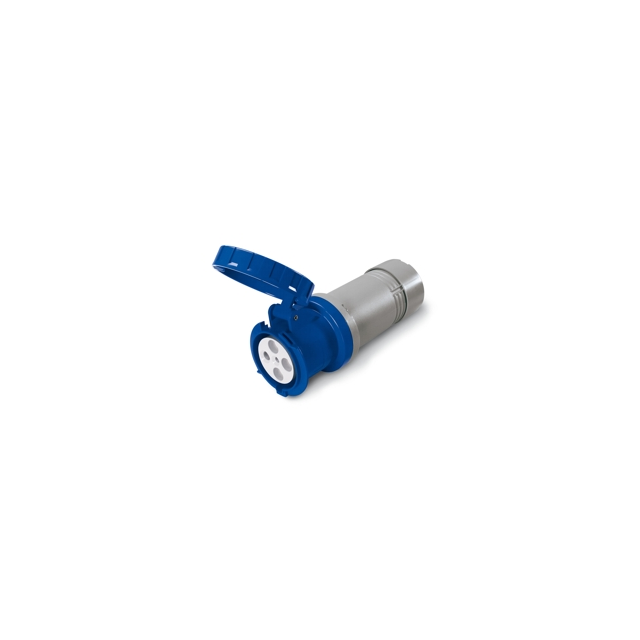

4100C9W

Active

Power Dynamics, Inc.

PWR ENT RCP PIN&SLEEVE STR SCREW

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT RCP PIN&SLEEVE STR SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	4100C9W

Approval Agency	cULus, UL
Connector Style	Pin and Sleeve (3P4W)
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	100 A
Features	Strain Relief, Impact Resistant, Chemical Resistant, Cord Grip, Push-Twist Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	3 Phase
Voltage Rating	250 VAC

PWR ENT RCP PIN&SLEEVE STR SCREW

Part	Mounting Type	Connector Type	Connector Style	Voltage Rating	Voltage Rating	Approval Agency	Number of Positions	Termination	Current Rating (Amps)	Features	Ingress Protection
Power Dynamics, Inc. 4100C9W	Free Hanging (In-Line)	Receptacle, Female Sockets	Pin and Sleeve (3P4W)	3 Phase	250 VAC	cULus, UL	4	Screw	100 A	Chemical Resistant, Cord Grip, Impact Resistant, Push-Twist Lock, Strain Relief	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Receptacle, Female Sockets Pin and Sleeve (3P4W) Free Hanging (In-Line)
