Specification	F250A4-072-D0720

Air Flow	693 CFM
Bearing Type	Ball
Current Rating	1.85 A
Fan Type	Motorized Impellers
Features	PWM Control, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Steel
Noise	74 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-22 °F
Power (Watts)	88.8 W
RPM	2500 RPM
Size / Dimension Diameter	250 mm
Size / Dimension Shape	Round
Static Pressure	1.964 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	48 VDC
Voltage Range (Max)	72 VDC
Voltage Range (Min)	30 VDC
Weight	5.3 lbs
Width	99.8 mm

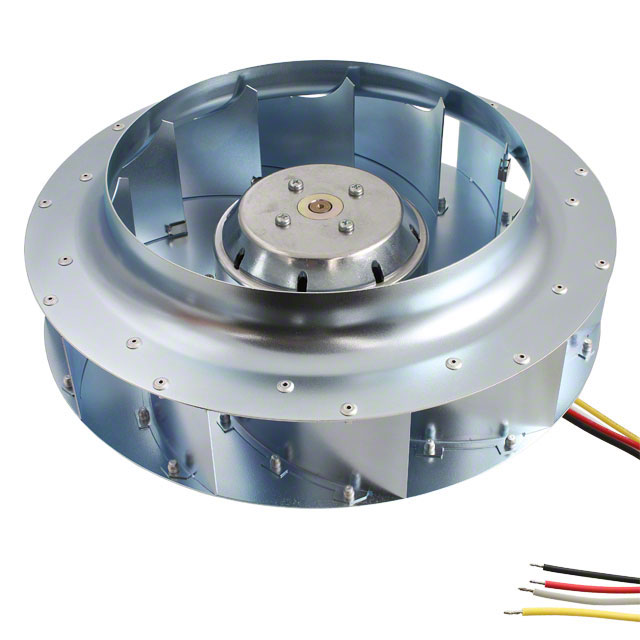

F250A4 Series

Part	Static Pressure	RPM	Operating Temperature (Max)	Operating Temperature (Min)	Width	Voltage - Rated	Features	Air Flow	Weight	Bearing Type	Fan Type	Termination Leads Count	Termination Type	Termination	Noise	Power (Watts)	Size / Dimension Diameter	Size / Dimension Shape	Lifetime	Current Rating	Material - Blade	Voltage Range (Max)	Voltage Range (Min)
NMB TECHNOLOGIES F250A4-072-D0720	1.964 in H2O	2500 RPM	158 °F	-22 °F	99.8 mm	48 VDC	PWM Control Speed Sensor (Tach)	693 CFM	5.3 lbs	Ball	Motorized Impellers	4 leads	Wire Leads	4 Wire Leads	74 dB	88.8 W	250 mm	Round	70000 Hrs	1.85 A	Steel	72 VDC	30 VDC
