CWSB21DADF

Active

NKK Switches

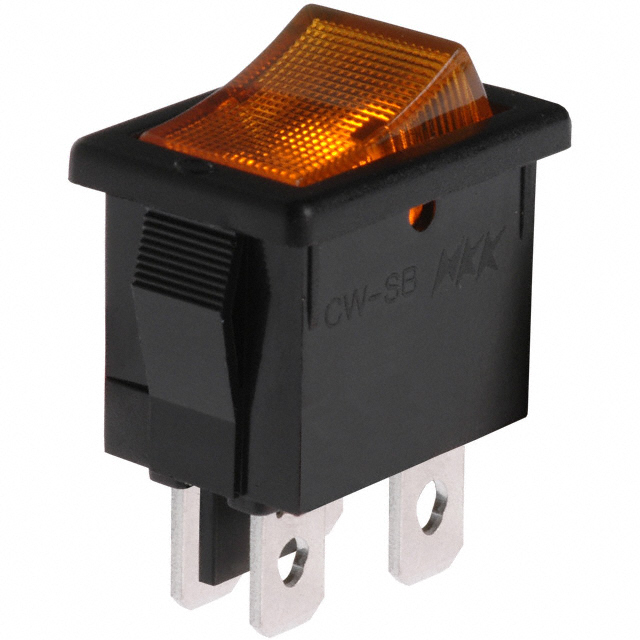

ROCKER SWITCH, ILLUMINATED, DPST, ON-NONE-OFF, AMBER, PANEL MOUNT, 9 A

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, ILLUMINATED, DPST, ON-NONE-OFF, AMBER, PANEL MOUNT, 9 A

Technical Specifications

Parameters and characteristics for this part

Specification	CWSB21DADF

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	cULus
Circuit	DPST
Color - Actuator/Cap	Amber
Current Rating (Amps)	9 A
Electrical Life	10000 Cycles
Features	Audible Click
Illumination Type, Color	Neon, Amber
Illumination Voltage (Nominal)	125 VAC
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Illumination Type, Color	Electrical Life	Approval Agency	Illumination Voltage (Nominal)	Voltage Rating - AC	Features	Actuator Marking	Circuit	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Switch Function	Mechanical Life	Termination Style	Current Rating (Amps)
NKK Switches CWSB21DADF	Panel Mount Snap-In	85 °C	-20 C	Amber	Amber Neon	10000 Cycles	cULus	125 VAC	125 V	Audible Click	No Marking	DPST	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	On-Off	30000 Steps	Quick Connect - 0.187" (4.7mm)	9 A
