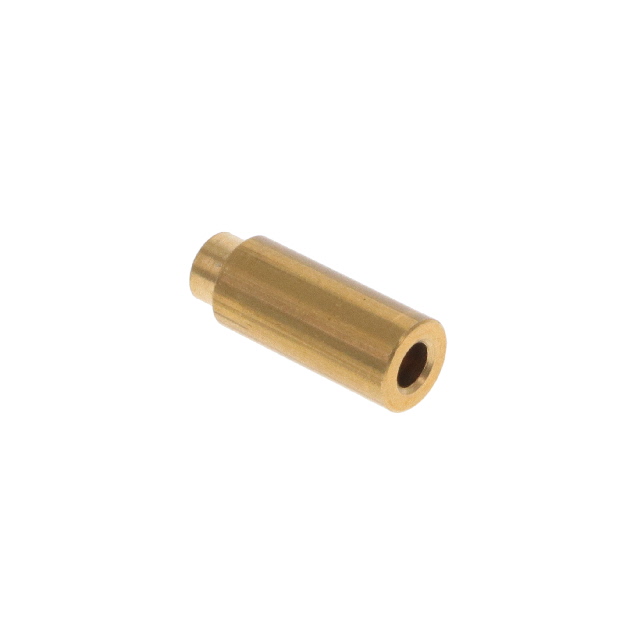

1538-B-4-B
ActiveRAF Electronic Hardware
1/4 RD X 9/16 X .115 ID
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1538-B-4-B
ActiveRAF Electronic Hardware
1/4 RD X 9/16 X .115 ID
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1538-B-4-B |
|---|---|
| Between Board Height | 0.563 in |
| Between Board Height | 14.29 mm |
| Diameter - Inside [diameter] | 0.115 in |
| Diameter - Inside [diameter] | 2.92 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall | 16.96 mm |
| Length - Overall [x] | 0.668 in |
| Material | Brass |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 5 | $ 0.63 | |||
| 10 | $ 0.57 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.45 | |||
Description
General part information
1538-B Series
Round Spacer Unthreaded Brass 0.563" (14.29mm)
