9137-0-00-15-00-00-38-0
ActiveMill-Max Manufacturing Corp.

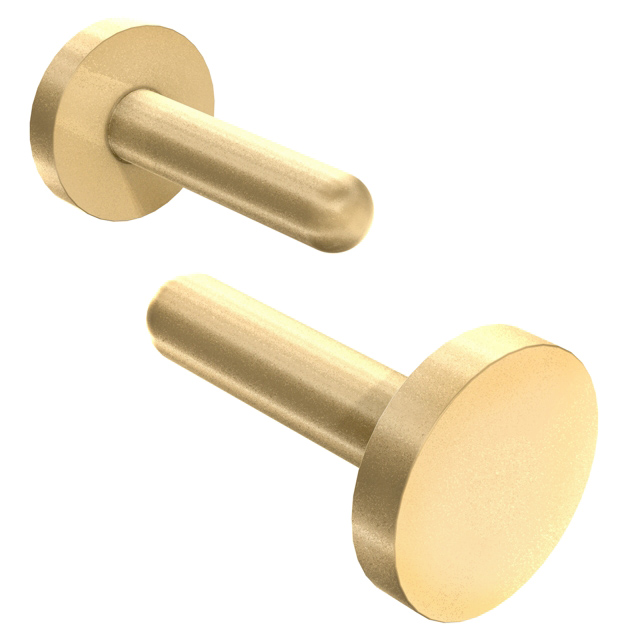

CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
9137-0-00-15-00-00-38-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9137-0-00-15-00-00-38-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.05 in |
| Flange Diameter [diameter] | 1.27 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.16 in |
| Length - Above Flange [x] | 4.06 mm |
| Length - Overall | 4.57 mm |
| Length - Overall | 0.18 " |
| Mounting Hole Diameter [diameter] | 0.022 in |
| Mounting Hole Diameter [diameter] | 0.56 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Terminal Style | Single End, Nail Head |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.64 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.33 | |||
| 3000 | $ 0.30 | |||
Description
General part information
9137-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
Documents
Technical documentation and resources
No documents available
