829-22-010-20-002101

Active

Mill-Max Manufacturing Corp.

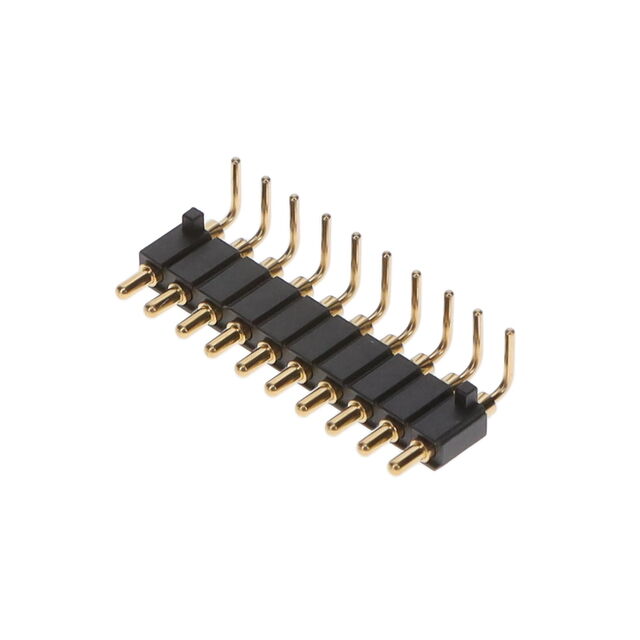

CONN SPRING PISTON 10POS R/A PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 10POS R/A PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Material	Connector Type	Number of Rows	Mounting Type	Contact Finish	Number of Contacts	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 829-22-017-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	17
Mill-Max Manufacturing Corp. 829-22-012-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	12
Mill-Max Manufacturing Corp. 829-22-006-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold		6
Mill-Max Manufacturing Corp. 829-22-007-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	7
Mill-Max Manufacturing Corp. 829-22-010-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	10
Mill-Max Manufacturing Corp. 829-22-018-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold
Mill-Max Manufacturing Corp. 829-22-003-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	3
Mill-Max Manufacturing Corp. 829-22-015-20-001101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	15
Mill-Max Manufacturing Corp. 829-22-013-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	13
Mill-Max Manufacturing Corp. 829-22-010-20-002101	0.51 µm	20 µin	2.54 mm	0.1 in	Copper Alloy	Piston	1	Through Hole Right Angle	Gold	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Spring Piston Connector Through Hole, Right Angle
