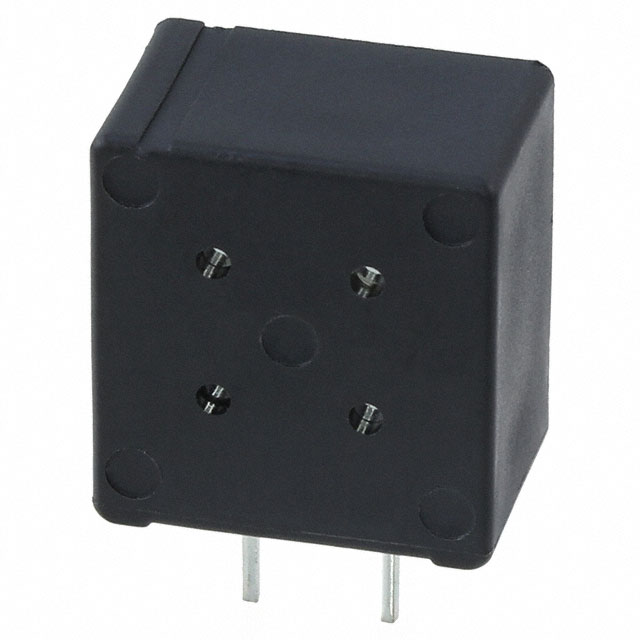

FM0H224ZF

Active

KEMET

CAP, 0.22F, 5.5V, SUPER CAP, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 0.22F, 5.5V, SUPER CAP, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	FM0H224ZF

Capacitance	220 mF
ESR (Equivalent Series Resistance)	100 Ohms
Height - Seated (Max) [Max]	0.453 "
Height - Seated (Max) [Max]	11.5 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial
Size / Dimension [x]	0.413 in
Size / Dimension [x]	10.5 mm
Size / Dimension [y]	6.5 mm
Size / Dimension [y]	0.256 in
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination	Mounting Type	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Capacitance	Tolerance [Max]	Tolerance [Min]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.
KEMET FM0H223ZF	5.5 V	70 °C	-25 °C	0.413 in	5 mm	0.197 "	10.5 mm	PC Pins	Through Hole	5 mm	0.197 in	200 Ohm	22000 µF	80 %	-20 %	Radial	12 mm	0.472 "
KEMET FM0H103ZF	5.5 V	70 °C	-25 °C	0.413 in	5 mm	0.197 "	10.5 mm	PC Pins	Through Hole	5 mm	0.197 in	300 Ohm	10000 µF	80 %	-20 %	Radial	12 mm	0.472 "
KEMET FM0H224ZF	5.5 V	70 °C	-25 °C	0.413 in	6.5 mm	0.256 in	10.5 mm	PC Pins	Through Hole	5 mm	0.197 in	100 Ohms	220 mF	80 %	-20 %	Radial			0.453 "	11.5 mm	1000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 mF (EDLC) Supercapacitor 5.5 V Radial 100Ohm 1000 Hrs @ 70°C
