880110

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.25 4POS NATURAL

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.25 4POS NATURAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	880110	8801 Series

Color	Natural	Natural
Connector Type	-	Plug
Contact Termination	-	Crimp
Contact Type	-	Male or Female
Fastening Type	-	Latch Lock/Eject Hooks
For Use With/Related Products	0.25 in	0.25 in
For Use With/Related Products	Quick Connects	Quick Connects
For Use With/Related Products	6.35 mm	6.35 mm
Gender	Female, Receptacle	Female, Receptacle
Material	Nylon	Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4 - 9
Number of Rows	-	3
Stacking Direction	Top to Bottom and Side to Side	Top to Bottom and Side to Side
Style	Housing	Housing
Terminal Size	6.35 mm	6.35 mm
Terminal Size	0.25 in	0.25 in
Terminal Type	Disconnect, Quick Connect	Disconnect, Quick Connect

CONN PLUG HSG 9POS

Part	Mounting Type	Number of Rows	Note	Contact Termination	Fastening Type	Number of Positions	Color	Contact Type	Connector Type	Terminal Type	Gender	Terminal Size	Terminal Size	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Style	Stacking Direction	Material
TE Connectivity AMP Connectors 880124	Free Hanging (In-Line)	3	Contacts Not Included	Crimp	Latch Lock/Eject Hooks	9	Natural	Male or Female	Plug
TE Connectivity AMP Connectors 880110	Free Hanging (In-Line)		Contacts Not Included			4	Natural			Disconnect, Quick Connect	Female, Receptacle	6.35 mm	0.25 in	0.25 in	Quick Connects	6.35 mm	Housing	Top to Bottom and Side to Side	Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

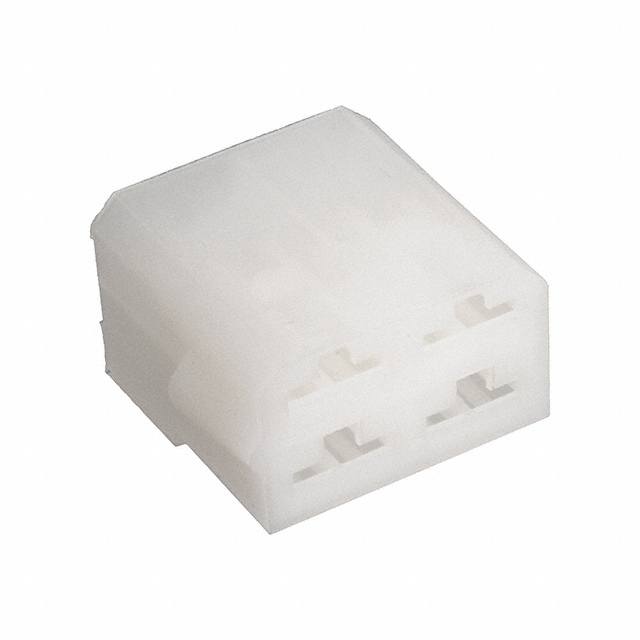

4 Position Housing Connector Female, Receptacle Natural 0.250" (6.35mm)
