BF140D03BK1200
ActiveAPEM

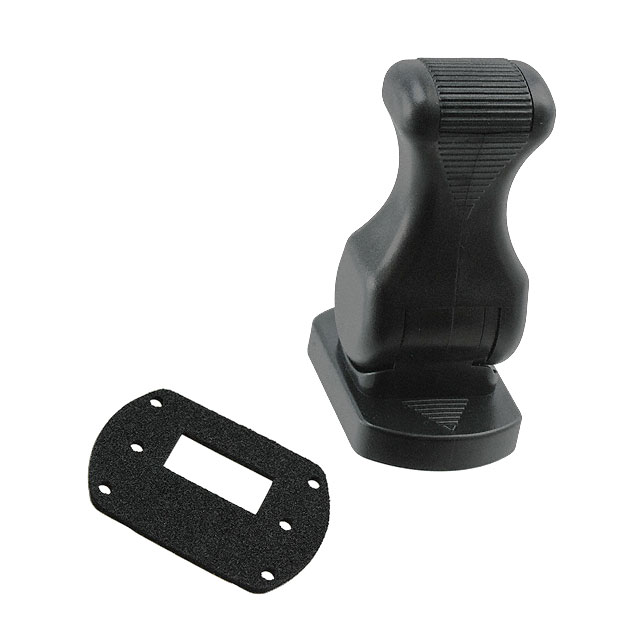

SWITCH JOYSTICK PADDLE HALL
Deep-Dive with AI
Search across all available documentation for this part.
BF140D03BK1200
ActiveAPEM
SWITCH JOYSTICK PADDLE HALL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BF140D03BK1200 |
|---|---|
| Actuator Type | Paddle |
| Features | 12.5 ° |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 2000000 Cycles |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Dimensions [x] | 21 mm |
| Panel Cutout Dimensions [y] | 10 mm |
| Switch Function | 2-Way Directional |
| Termination Style | Connector |
| Type | Joystick, 1 - Axis |
| Voltage - Supply | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 256.45 | |
Description
General part information
BF140D03 Series
Joystick, 1 - Axis Analog (Hall Effect) Output
Documents
Technical documentation and resources
No documents available
