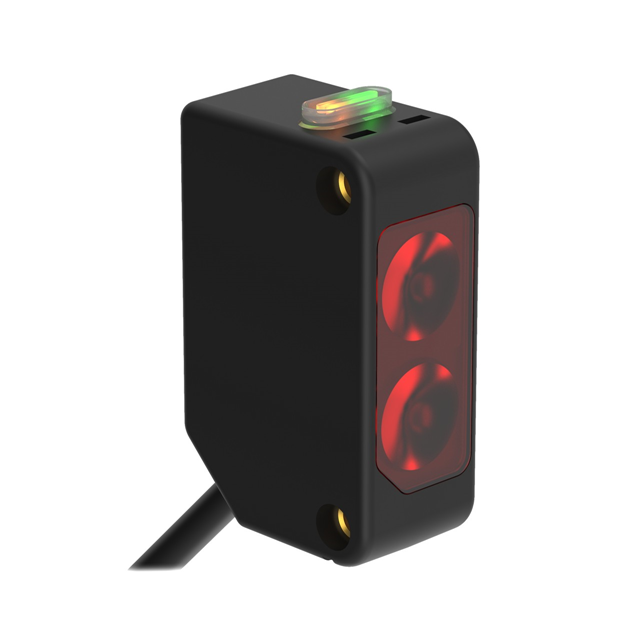

QMT42VP6FF2000Q

Active

BANNER ENGINEERING

QMT42 SERIES: FIXED FIELDRAN

Search across all available documentation for this part.

Active

BANNER ENGINEERING

QMT42 SERIES: FIXED FIELDRAN

Technical Specifications

Parameters and characteristics for this part

Specification	QMT42VP6FF2000Q

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	1 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Light Source	Response Time	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Sensing Distance	Sensing Distance	Connection Method
BANNER ENGINEERING QMT42VP6FF2000Q	PNP - Dark-ON/Light-ON - Selectable	55 °C	-20 C	Infrared	1 ms	Background Suppression	30 VDC	10 VDC	NEMA 6P IEC IP67	78.74 "	2 m	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 266.00
Newark	Each	1	$ 271.00

General part information

Background Suppression Optical Sensor 78.740" (2m) PNP - Dark-ON/Light-ON - Selectable
