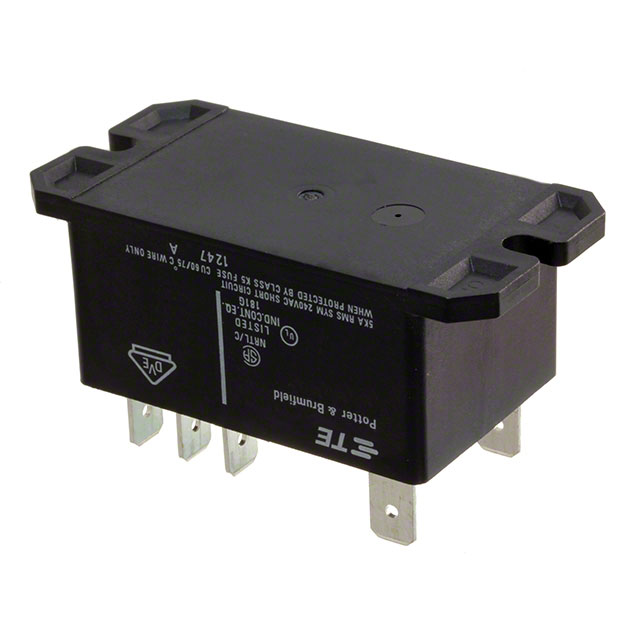

T92P11A22-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 30A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T92P11A22-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 30A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T92P11A22-120

Coil Current	33.3 mA
Coil Insulation	Class F
Coil Resistance	950 Ohms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	30 A
Mounting Type	Chassis Mount
Must Operate Voltage	96 VAC
Must Release Voltage	12 VAC
Operate Time	15 ms
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	600 VAC
Termination Style	Quick Connect - 0.250" (6.3mm)

T92P1 Series

Part	Contact Form	Mounting Type	Coil Current	Contact Material	Contact Rating (Current)	Switching Voltage	Operate Time	Coil Type	Must Release Voltage	Termination Style	Coil Voltage	Coil Insulation	Must Operate Voltage	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Coil Resistance
TE Connectivity Potter & Brumfield Relays T92P11A22-12	DPDT (2 Form C)	Chassis Mount	333 mA	Silver Cadmium Oxide (AgCdO)	30 A	600 VAC	15 ms	Non Latching	1.2 VAC	Quick Connect - 0.250" (6.3mm)	12 VAC/DC	Class F	9.6 VAC/DC	15 ms	-55 °C	65 °C	General Purpose
TE Connectivity Potter & Brumfield Relays T92P11D22-110	DPDT (2 Form C)	Chassis Mount	15.5 mA	Silver Cadmium Oxide (AgCdO)	30 A	600 VAC	15 ms	Non Latching	11 VDC	Quick Connect - 0.250" (6.3mm)	110 VDC	Class F	82.5 VDC	15 ms	-55 °C	85 °C	General Purpose	7.25 kOhms
TE Connectivity Potter & Brumfield Relays T92P11D24-24	DPDT (2 Form C)	Chassis Mount	68.6 mA	Silver Tin Oxide Indium Oxide (AgSnOInO)	30 A	600 VAC	25 ms	Non Latching	2.4 VDC	Quick Connect - 0.250" (6.3mm)	24 VDC	Class F	18 VDC	25 ms	-55 °C	85 °C	General Purpose	350 Ohms
TE Connectivity Potter & Brumfield Relays T92P11A42-120	DPDT (2 Form C)	Chassis Mount	33.3 mA	Silver Cadmium Oxide (AgCdO)	30 A	600 VAC	15 ms	Non Latching	12 VAC	Quick Connect - 0.187"/0.250"	120 VAC	Class F	96 VAC	15 ms	-55 °C	65 °C	General Purpose	950 Ohms
TE Connectivity Potter & Brumfield Relays T92P11D22-12	DPDT (2 Form C)	Chassis Mount	140 mA	Silver Cadmium Oxide (AgCdO)	30 A	600 VAC	15 ms	Non Latching	1.2 VDC	Quick Connect - 0.250" (6.3mm)	12 VDC	Class F	9 VDC	15 ms	-55 °C	85 °C	General Purpose	86 Ohms
TE Connectivity Potter & Brumfield Relays T92P11A22-120	DPDT (2 Form C)	Chassis Mount	33.3 mA	Silver Cadmium Oxide (AgCdO)	30 A	600 VAC	15 ms	Non Latching	12 VAC	Quick Connect - 0.250" (6.3mm)	120 VAC	Class F	96 VAC	15 ms	-55 °C	65 °C	General Purpose	950 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.90
		10	$ 24.37
		25	$ 23.09
		50	$ 22.17
		100	$ 21.29
		250	$ 20.17
		500	$ 19.37

Description

General part information

T92P1 Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
