917894-1

Active

TE Connectivity AMP Connectors

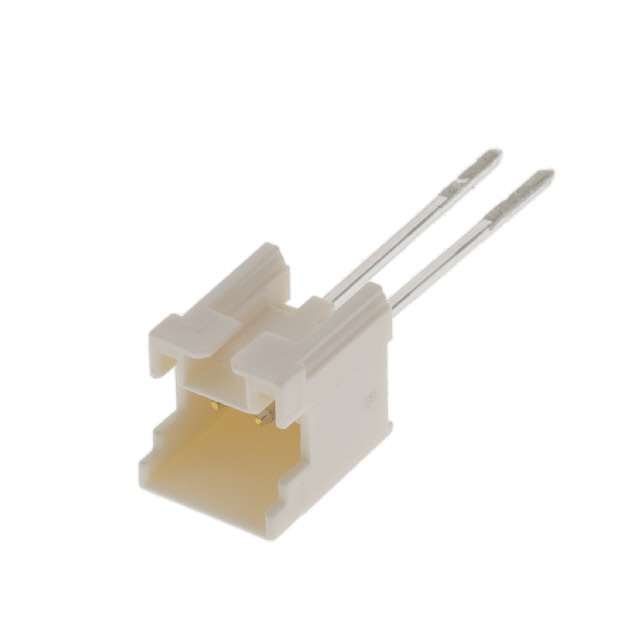

CONN HEADER VERT 2POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917894-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	9.8 mm
Insulation Height	0.386 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	0.41 in
Overall Contact Length	10.41 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 2POS 2.5MM

Part	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Color	Features	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Voltage Rating	Style	Insulation Height	Insulation Height	Connector Type	Insulation Material	Mated Stacking Heights	Contact Material	Number of Positions	Material Flammability Rating	Applications	Number of Rows	Mounting Type	Contact Type	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post [x]
TE Connectivity AMP Connectors 917894-1	Square	2.5 mm	0.098 in	Natural	Board Guide	0.41 in	10.41 mm	Tin	Shrouded - 4 Wall	0.185 in	4.7 mm	All	50 V	Board to Cable/Wire	9.8 mm	0.386 in	Header	Polyamide (PA66), Nylon 6/6, Glass Filled	13.7 mm	Copper Alloy	2	UL94 V-0	General Purpose	1	Through Hole	Male Pin	Latch Holder	Kinked Pin, Solder	-30 ░C	105 ░C	3 A	3.2 mm	0.126 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.098" (2.50mm)
