346-012-500-608
ActiveEDAC Inc.

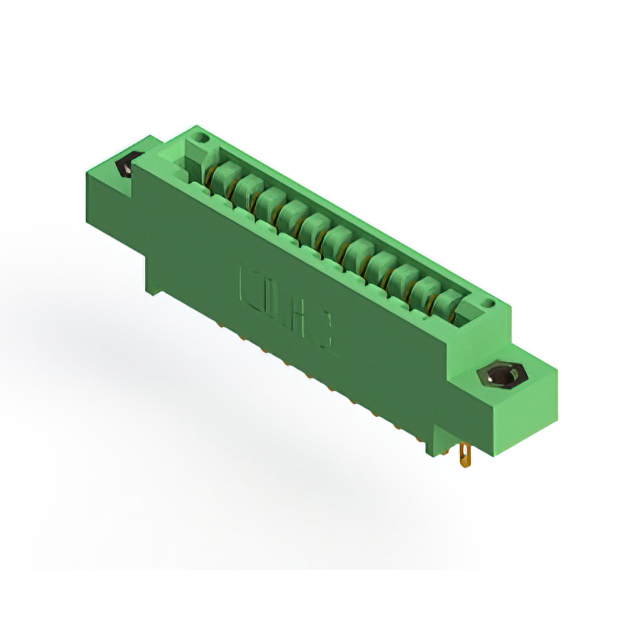

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-012-500-608
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-012-500-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
346-012 Series
...
| Part | Read Out | Card Type | Termination Rows | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Termination | Number of Rows | Contact Type | Contact Finish | Number of Positions/Bay/Row [custom] | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Features | Color | Gender | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | 0.125 in | 3.18 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Copper Alloy | Solder | 2 | Cantilever | Gold | 6 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Card Extender | Green | Female | ||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Solder | 2 | Cantilever | Gold | 6 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Green | Female | |||||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Wire Wrap | 2 | Cantilever | Gold | 6 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Green | Female | |||||
EDAC Inc. | Single | Non Specified - Single Edge | 1 | 0.125 in | 3.18 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Copper Alloy | Solder | 1 | Cantilever | Gold | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Green | Female | |||
EDAC Inc. | Single | Non Specified - Single Edge | 1 | 0.125 in | 3.18 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Copper Alloy | Solder | 1 | Cantilever | Gold | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Green | Female | |||
EDAC Inc. | Single | Non Specified - Single Edge | 1 | 0.125 in | 3.18 mm | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Solder Eyelet(s) | 1 | Cantilever | Gold | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Green | Female | |||||
EDAC Inc. | Single | Non Specified - Single Edge | 1 | 0.125 in | 3.18 mm | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Solder | 1 | Cantilever | Gold | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Card Guides | Green | Female | ||||
EDAC Inc. | Single | Non Specified - Single Edge | 1 | 0.125 in | 3.18 mm | Copper Alloy | Solder | 1 | Cantilever | Gold | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Green | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Single | Non Specified - Single Edge | 1 | 0.125 in | 3.18 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Copper Alloy | Solder | 1 | Cantilever | Gold | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Through Hole | Green | Female | |||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | 0.125 in | 3.18 mm | Copper Alloy | Solder Eyelet(s) | 2 | Cantilever | Gold | 6 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Card Extender | Green | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-012 Series
12 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
