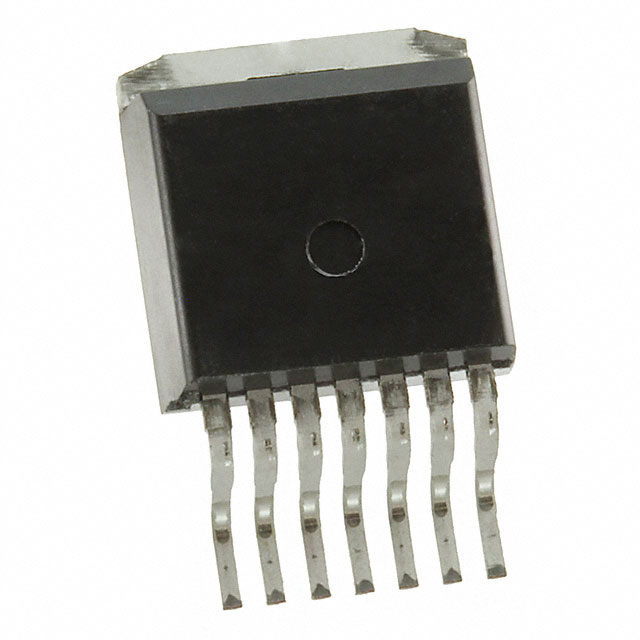

C3M0120090J-TR

Active

Wolfspeed

SICFET N-CH 900V 22A D2PAK-7

Search across all available documentation for this part.

Active

Wolfspeed

SICFET N-CH 900V 22A D2PAK-7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 900 V 22A (Tc) 83W (Tc) Surface Mount TO-263-7

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	C3M0120090J-TR	C3M0120090 Series

Current - Continuous Drain (Id) @ 25°C	22 A	22 - 23 A
Drain to Source Voltage (Vdss)	900 V	900 V
Drive Voltage (Max Rds On, Min Rds On)	15 V	15 V
FET Type	N-Channel	N-Channel
Gate Charge (Qg) (Max) @ Vgs	17.3 nC	17.3 nC
Input Capacitance (Ciss) (Max) @ Vds	350 pF	350 - 414 pF
Mounting Type	Surface Mount	Through Hole, Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	TO-247-3, D2PAK (7 Leads + Tab), TO-263-8, TO-263CA
Power Dissipation (Max)	83 W	83 W
Power Dissipation (Max)	-	97 W
Rds On (Max) @ Id, Vgs	155 mOhm	155 mOhm
Supplier Device Package	TO-263-7	TO-247-3, TO-263-7
Vgs (Max) [Max]	18 V	18 V
Vgs (Max) [Min]	-8 V	-8 V
Vgs(th) (Max) @ Id	3.5 V	3.5 V

SICFET N-CH 900V 23A TO247-3

Part	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Power Dissipation (Max) [Max]	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Mounting Type	FET Type	Vgs (Max) [Max]	Vgs (Max) [Min]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)
Wolfspeed C3M0120090D	17.3 nC	TO-247-3	97 W	23 A	15 V	900 V	Through Hole	N-Channel	18 V	-8 V	TO-247-3	-55 °C	150 °C	3.5 V	414 pF	155 mOhm
Wolfspeed C3M0120090J	17.3 nC	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA		22 A	15 V	900 V	Surface Mount	N-Channel	18 V	-8 V	TO-263-7	-55 °C	150 °C	3.5 V	350 pF	155 mOhm	83 W
Wolfspeed C3M0120090J-TR	17.3 nC	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA		22 A	15 V	900 V	Surface Mount	N-Channel	18 V	-8 V	TO-263-7	-55 °C	150 °C	3.5 V	350 pF	155 mOhm	83 W
