SSL-LX5097IGW
ActiveLumex Opto/Components Inc.

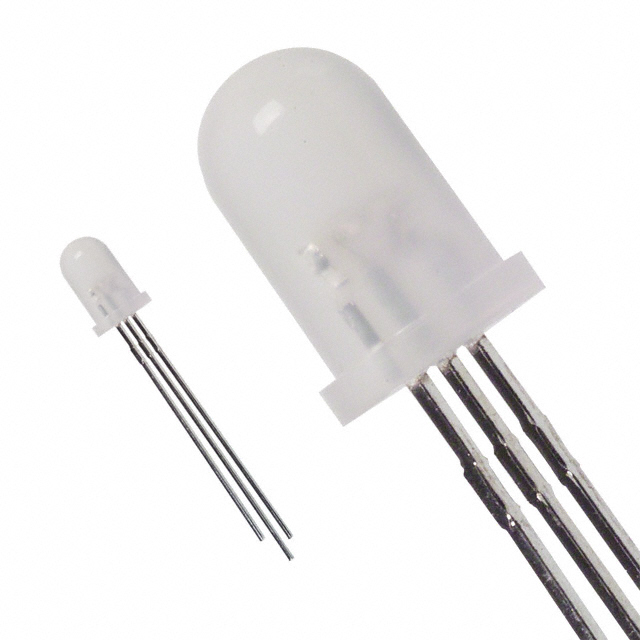

LED GRN/RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSL-LX5097IGW
ActiveLumex Opto/Components Inc.
LED GRN/RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSL-LX5097IGW | SSL-LX5097 Series |
|---|---|---|
| Color | Red, Green | Red, Green, Blue, Yellow |
| Configuration | Common Cathode | Common Cathode, Common Anode |
| Current - Test | 20 mA, 20 mA | 20 mA |
| Current - Test | - | 20 mA |
| Current - Test | - | 20 mA |
| Current - Test | - | 20 mA |
| Height (Max) [Max] [z] | 8.6 mm | 8.6 mm |
| Lens Color | White | Colorless, White |
| Lens Size | T-1 3/4 | T-1 3/4 |
| Lens Size | 5 mm | 5 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Diffused | Clear, Diffused |
| Millicandela Rating | - | 800 mcd |
| Millicandela Rating | - | 65 - 700 mcd |
| Millicandela Rating [custom] | 20 mcd | 20 - 800 mcd |
| Millicandela Rating [custom] | 20 mcd | 20 - 700 mcd |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial - 3 Leads | Radial, Radial - 3 Leads |
| Size / Dimension | - | 5 mm |
| Supplier Device Package | T-1 3/4 | T-1 3/4 |
| Viewing Angle | 60 ° | 50 - 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V, 2.1 V | 2 - 3.5 V |
| Wavelength - Peak | 565 nm, 635 nm | 565 - 636 nm |
| Wavelength - Peak | - | 470 nm |
| Wavelength - Peak | - | 525 nm |
| Wavelength - Peak | - | 636 nm |
SSL-LX5097 Series
LED RGB CLEAR T-1 3/4 T/H
| Part | Supplier Device Package | Size / Dimension [diameter] | Package / Case | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Lens Style | Lens Transparency | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Configuration | Lens Size | Lens Size | Mounting Type | Voltage - Forward (Vf) (Typ) | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Viewing Angle | Height (Max) [Max] [z] | Color | Lens Color | Current - Test | Wavelength - Peak | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSL-LX5097SIUBUPGC | T-1 3/4 | 5 mm | Radial | 20 mA | 20 mA | 20 mA | Round with Domed Top | Clear | 470 nm | 525 nm | 636 nm | Common Cathode | T-1 3/4 | 5 mm | Through Hole | 2 V, 3.5 V, 3.5 V | 800 mcd | 800 mcd | 700 mcd | 50 ° | 8.6 mm | Blue, Green, Red | Colorless | |||
Lumex Opto/Components Inc. SSL-LX5097IGW | T-1 3/4 | Radial - 3 Leads | Round with Domed Top | Diffused | Common Cathode | T-1 3/4 | 5 mm | Through Hole | 2.1 V, 2.1 V | 20 mcd | 20 mcd | 60 ° | 8.6 mm | Green, Red | White | 20 mA, 20 mA | 565 nm, 635 nm | |||||||||
Lumex Opto/Components Inc. SSL-LX5097IGW-CA | T-1 3/4 | Radial - 3 Leads | Round with Domed Top | Diffused | Common Anode | T-1 3/4 | 5 mm | Through Hole | 2.1 V, 2.1 V | 20 mcd | 20 mcd | 60 ° | 8.6 mm | Green, Red | White | 20 mA, 20 mA | 565 nm, 635 nm | |||||||||
Lumex Opto/Components Inc. SSL-LX5097SISGSYC | T-1 3/4 | Radial | Round with Domed Top | Clear | Common Cathode | T-1 3/4 | 5 mm | Through Hole | 2 V, 2.1 V, 2.2 V | 50 ° | 8.6 mm | Green, Red, Yellow | Colorless | 20 mA, 20 mA, 20 mA | 565 nm, 585 nm, 636 nm | 65 mcd, 450 mcd, 700 mcd |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.72 | |
| 10 | $ 0.48 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| 5000 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
Description
General part information
SSL-LX5097 Series
Green, Red LED Indication - Discrete 2.1V Green, 2.1V Red Radial - 3 Leads
