SSL-LX5097SISGSYC

Active

Lumex Opto/Components Inc.

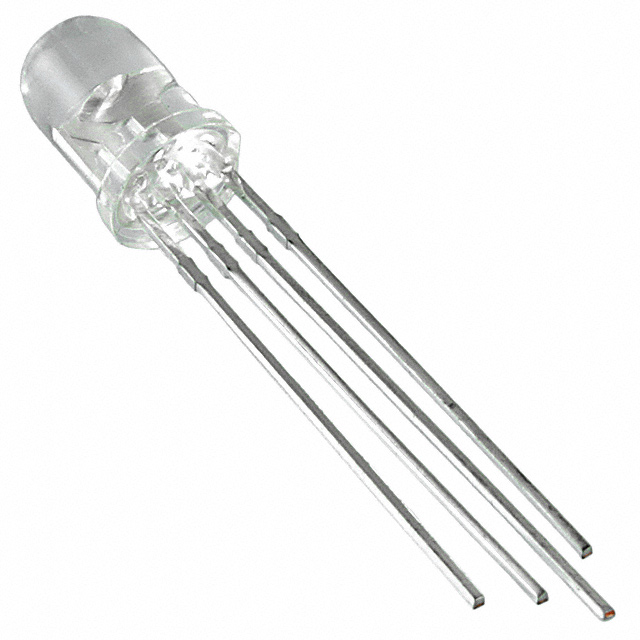

LED GRN/RED/YLW CLR T-1 3/4 T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN/RED/YLW CLR T-1 3/4 T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RGB CLEAR T-1 3/4 T/H

Part	Supplier Device Package	Size / Dimension [diameter]	Package / Case	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Style	Lens Transparency	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Configuration	Lens Size	Lens Size	Mounting Type	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle	Height (Max) [Max] [z]	Color	Lens Color	Current - Test	Wavelength - Peak	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX5097SIUBUPGC	T-1 3/4	5 mm	Radial	20 mA	20 mA	20 mA	Round with Domed Top	Clear	470 nm	525 nm	636 nm	Common Cathode	T-1 3/4	5 mm	Through Hole	2 V, 3.5 V, 3.5 V	800 mcd	800 mcd	700 mcd	50 °	8.6 mm	Blue, Green, Red	Colorless
Lumex Opto/Components Inc. SSL-LX5097IGW	T-1 3/4		Radial - 3 Leads				Round with Domed Top	Diffused				Common Cathode	T-1 3/4	5 mm	Through Hole	2.1 V, 2.1 V		20 mcd	20 mcd	60 °	8.6 mm	Green, Red	White	20 mA, 20 mA	565 nm, 635 nm
Lumex Opto/Components Inc. SSL-LX5097IGW-CA	T-1 3/4		Radial - 3 Leads				Round with Domed Top	Diffused				Common Anode	T-1 3/4	5 mm	Through Hole	2.1 V, 2.1 V		20 mcd	20 mcd	60 °	8.6 mm	Green, Red	White	20 mA, 20 mA	565 nm, 635 nm
Lumex Opto/Components Inc. SSL-LX5097SISGSYC	T-1 3/4		Radial				Round with Domed Top	Clear				Common Cathode	T-1 3/4	5 mm	Through Hole	2 V, 2.1 V, 2.2 V				50 °	8.6 mm	Green, Red, Yellow	Colorless	20 mA, 20 mA, 20 mA	565 nm, 585 nm, 636 nm	65 mcd, 450 mcd, 700 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green, Red, Yellow LED Indication - Discrete 2.2V Green, 2V Red, 2.1V Yellow Radial
