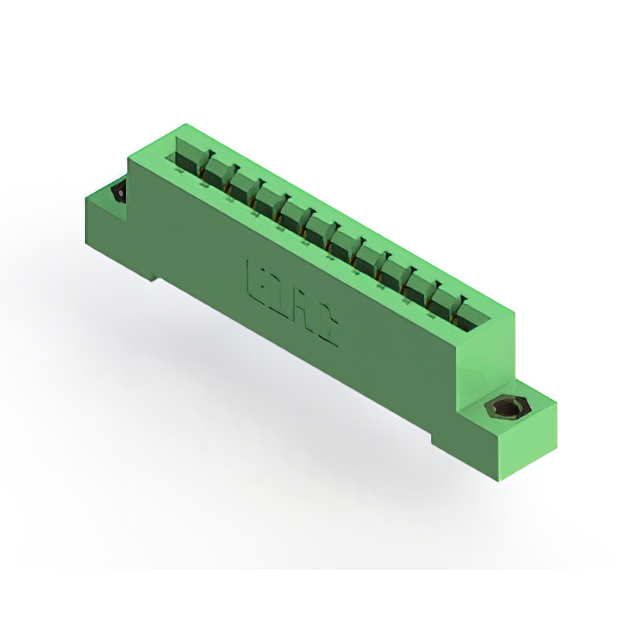

833-011-520-107
ActiveEDAC Inc.
CONN EDGE SGL FMALE 11POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-011-520-107
ActiveEDAC Inc.
CONN EDGE SGL FMALE 11POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-011-520-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
833-011 Series
| Part | Number of Rows | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Card Type | Material - Insulation | Mounting Type | Flange Feature | Flange Feature | Flange Feature | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Termination | Number of Positions | Contact Finish | Gender | Color | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Solder | 11 | Gold | Female | Green | Cantilever | ||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | Floating Bobbin Top Mount Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Wire Wrap | 11 | Gold | Female | Green | Cantilever | 2.95 mm | 0.116 in | ||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole Right Angle | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Solder | 11 | Gold | Female | Green | Cantilever | |||||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | Flush Mount Top Opening Unthreaded | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Solder | 11 | Gold | Female | Green | Cantilever | 3.25 mm | 0.128 " | ||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Solder | 11 | Gold | Female | Green | Cantilever | ||||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | Flush Mount Top Opening Unthreaded | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Wire Wrap | 11 | Gold | Female | Green | Cantilever | 3.25 mm | 0.128 " | ||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Solder | 11 | Gold | Female | Green | Cantilever | ||||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Wire Wrap | 11 | Gold | Female | Green | Cantilever | |||||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | M3 Threaded Insert Top Mount Opening | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Wire Wrap | 11 | Gold | Female | Green | Cantilever | ||||
EDAC Inc. | 1 | 11 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Single | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Through Hole | Flush Mount Top Opening Unthreaded | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Wire Wrap | 11 | Gold | Female | Green | Cantilever | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-011 Series
11 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
