HCSD-10-S-11.00-01-T-N-G

Active

Samtec Inc.

.100" DOUBLE ROW IDC RIBBON CABL

Search across all available documentation for this part.

Active

Samtec Inc.

.100" DOUBLE ROW IDC RIBBON CABL

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Length [x]	Number of Rows	Cable Termination	Pitch - Cable	Pitch - Cable	Number of Positions	Features	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	Connector Type	Contact Finish	Length	Length	Color
Samtec Inc. HCSD-10-D-05.50-01-N-G	139.7 mm	0.458 ft	5.5 in	2	IDC	0.05 "	1.27 mm	20	Polarizing Key	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded	Socket to Socket	Gold
Samtec Inc. HCSD-10-S-11.00-01-T-N-G	279.4 mm	0.917 ft	11 "	2	IDC	0.05 "	1.27 mm	20	Polarizing Key	0.1 in	2.54 mm	150 µin	150 Áin	Unshielded	Socket to Cable	Tin
Samtec Inc. HCSD-10-D-12.00-01-N				2	IDC	0.05 "	1.27 mm	20	Polarizing Key	0.1 in	2.54 mm	10 Áin	0.25 Ám	Unshielded	Socket to Socket	Gold	1 ft	304.8 mm	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

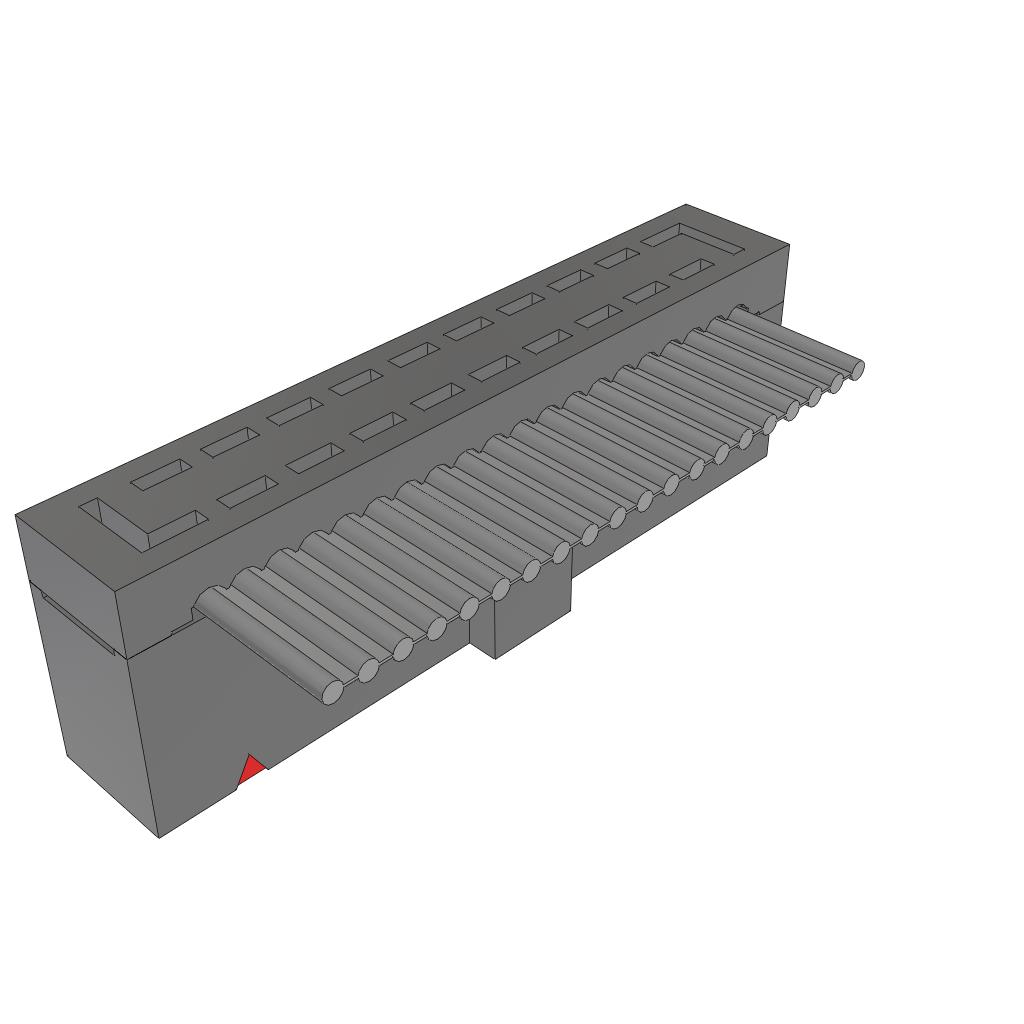

20 Position Cable Assembly Rectangular Socket to Cable 0.917' (279.40mm, 11.00")
