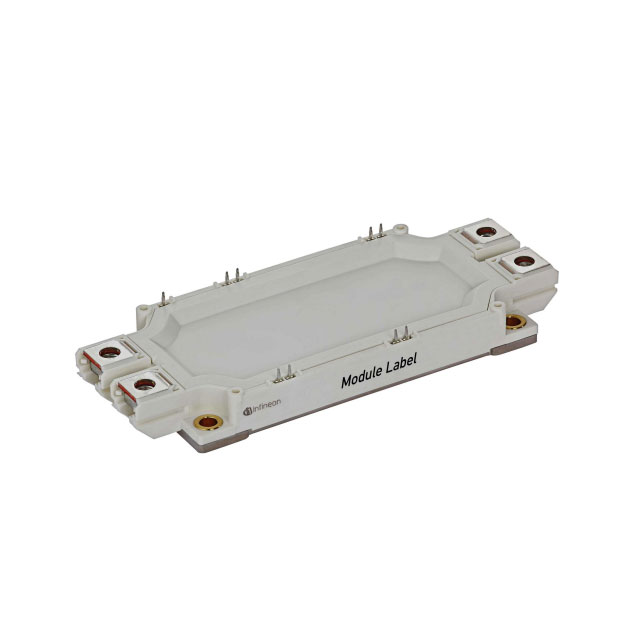

IFF300B12ME4PB11BPSA1

Active

Infineon Technologies

THE IFF300B12ME4P_B11 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 300 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IFF300B12ME4PB11BPSA1

Active

Infineon Technologies

THE IFF300B12ME4P_B11 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 300 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IFF300B12ME4PB11BPSA1

Configuration	Half Bridge
Current - Collector Cutoff (Max) [Max]	3 mA
IGBT Type	Trench Field Stop
Input	Standard
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	AG-ECONOD-6
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

IFF300 Series

Part	Mounting Type	Package / Case	Input	Vce(on) (Max) @ Vge, Ic	NTC Thermistor	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	IGBT Type
Infineon Technologies IFF300B12ME4PB11BPSA1	Chassis Mount	Module	Standard	2.1 V		3 mA	AG-ECONOD-6	Half Bridge	1200 V	20 mW	Trench Field Stop

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 152.30
		12	$ 142.65
		30	$ 137.28

Description

General part information

IFF300 Series

EconoDUAL™ 31200 V, 300 A dualIGBT modulewith TRENCHSTOPTMIGBT4, Emitter Controlled 4 Diode, NTC,integrated shunts,PressFITcontact technology and pre-appliedThermal Interface Material.
