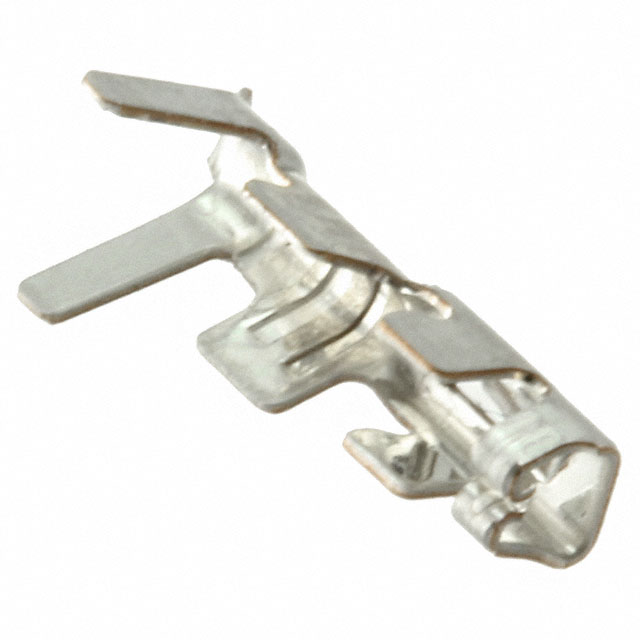

SLEN-001T-P0.2
ActiveJST Sales America Inc.
CONN SSL SKT CONT 22-26AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsJST Prefix Suffix Chart
SLEN-001T-P0.2
ActiveJST Sales America Inc.
CONN SSL SKT CONT 22-26AWG CRIMP
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | SLEN-001T-P0.2 |
|---|---|
| Connector Type | Contact, Socket |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Style | Board to Cable/Wire |
| Termination | Crimp |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SLEN-001 Series
22-26 AWG SSL Contact, Socket Crimp Free Hanging (In-Line)
