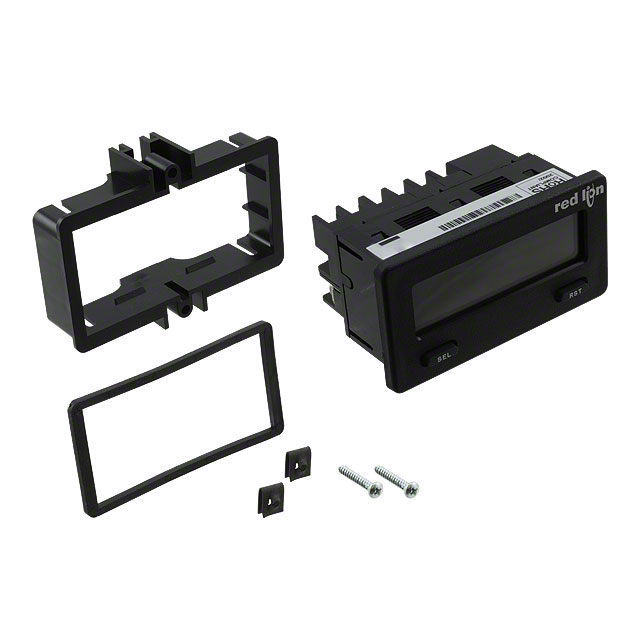

CUB5IB00
ActiveDIGITAL PANEL METER, MINIATURE, 5 DIGITS, DC CURRENT, BACKLIGHT DISPLAY
Deep-Dive with AI
Search across all available documentation for this part.
CUB5IB00
ActiveDIGITAL PANEL METER, MINIATURE, 5 DIGITS, DC CURRENT, BACKLIGHT DISPLAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CUB5IB00 |
|---|---|
| Display Characters - Height [z] | 12.2 mm |
| Display Characters - Height [z] | 0.48 in |
| Display Type | LCD - Dual Color Characters, Backlight |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Measuring Range [Max] | 200 mA |
| Measuring Range [Min] | 0 A |
| Measuring Type | Current |
| Number of Characters Per Row | 5 |
| Operating Temperature [Max] | 35 °C |
| Operating Temperature [Min] | -35 °C |
| Output Type | 1.81 mOhm |
| Panel Cutout Dimensions [x] | 68 mm |
| Panel Cutout Dimensions [y] | 33 mm |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 9 V |
| Weight | 100.24 g |
| Weight | 0.221 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CUB5IB Series
The CUB5IB00 is a Miniature Electronic DC Current Meter with reflective display provides the user the ultimate in flexibility, from its complete user programming to the optional set point control and communication capability. The CUB5I accepts a DC Current input signal and provides a display in the desired unit of measure. The meter also features minimum and maximum display capture, display offset, units indicator and programmable user input. The display can be toggled either manually or automatically between the selected displays.
