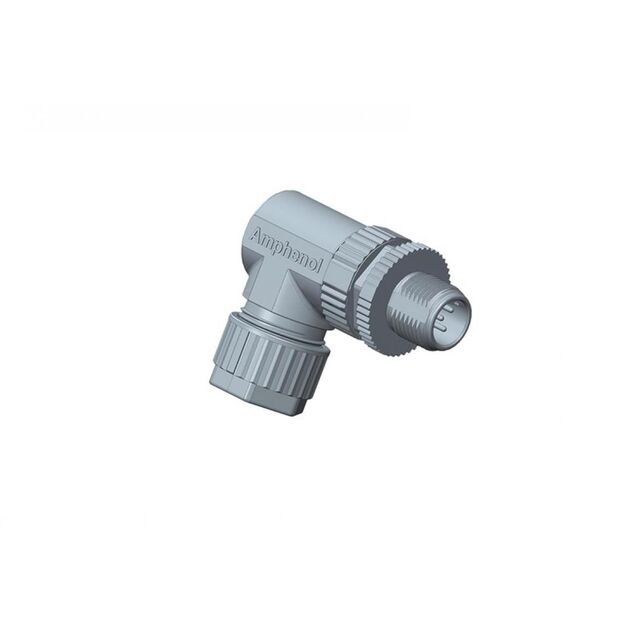

M12B-05BMMB-SR7001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, SCREW-IN, F

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, SCREW-IN, F

Technical Specifications

Parameters and characteristics for this part

Specification	M12B-05BMMB-SR7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.276 in
Cable Opening [Max] [diameter]	7 mm
Cable Opening [Min] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.157 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 VDC

Part	Voltage Rating	Connector Type	Contact Material	Shielding	Termination	Ingress Protection	Current Rating (Amps)	Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Backshell Material, Plating	Orientation	Shell Size - Insert	Insert Material	Mounting Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Amphenol LTW M12B-05BMMB-SR7001	60 VDC	Male Pins Receptacle	Copper Alloy	Unshielded	Screw	IP67 - Dust Tight Waterproof	4 A	Black	Backshell	-40 °C	105 ░C	Plastic	Gold	0.276 in	4 mm	0.157 in	7 mm	Nylon Polyamide (PA)	B	M12-5	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle
Amphenol LTW M12B-05BMMB-SL7001	60 VDC	Male Pins Receptacle	Copper Alloy	Unshielded	Screw	IP67 - Dust Tight Waterproof	4 A	Black	Backshell	-40 °C	105 ░C	Plastic	Gold					Nylon Polyamide (PA)	B	M12-5	Nylon Polyamide (PA)	Free Hanging (In-Line)	4 mm	0.315 in	0.157 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Screw
