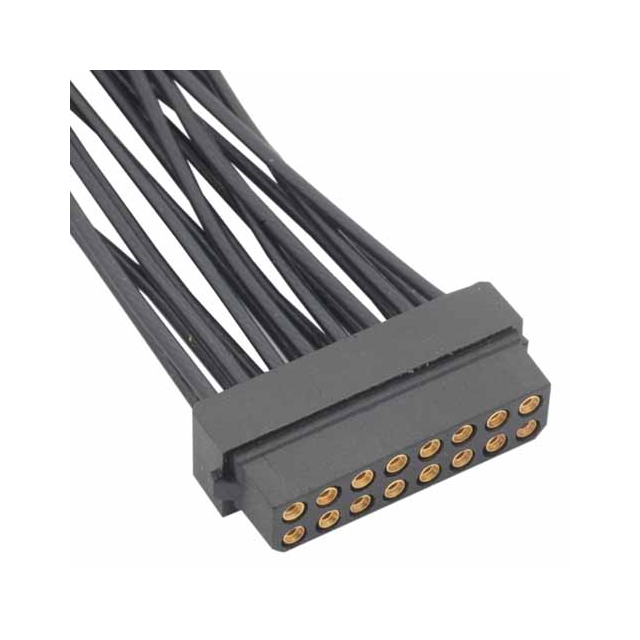

B5740-220-F-C-0

Active

Harwin Inc.

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Part	Contact Type	Wire Type	Color	Fastening Type	Wire Gauge [Min]	Wire Gauge [Max]	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Cable Termination	Contact Finish	Connector Type	Number of Positions
Harwin Inc. B5740-220-F-C-0	Female Socket	Discrete	Black	Locking Ramp	24 AWG	28 AWG	2 mm	0.079 in	0.3 Ám	11.8 Áin	0.079 in	2 mm	Free Hanging (In-Line)	2	Crimp	Gold	Receptacle	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
