5-104549-3
ActiveTE Connectivity AMP Connectors

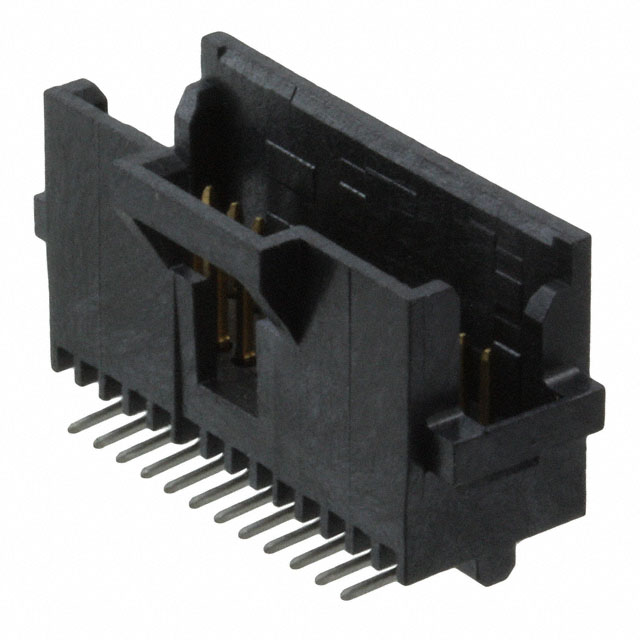

CONN HEADER SMD 24POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-104549-3
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 24POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104549-3 | 104549 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 0.125 in | 0.125 in |
| Contact Length - Mating | 3.18 mm | 3.18 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Color | Black | Black |
| Insulation Height | 0.435 in | 0.435 in |
| Insulation Height | 11.05 mm | 11.05 mm |
| Insulation Material | Polyphthalamide (PPA) | Polyphthalamide (PPA) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 24 | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.14 | |
| 24 | $ 4.48 | |||
| 120 | $ 4.15 | |||
104549 Series
CONN HEADER SMD 60POS 1.27MM
| Part | Contact Finish - Mating | Number of Positions | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Mounting Type | Number of Rows | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Applications | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Style | Fastening Type | Contact Finish - Post | Contact Material | Contact Type | Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104549-8 | Gold | 60 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 5-104549-3 | Gold | 24 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 5-104549-9 | Gold | 80 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 5-104549-2 | Gold | 20 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 1-104549-1 | Gold | 12 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin-Lead | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 5-104549-5 | Gold | 30 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 104549-2 | Gold | 20 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin-Lead | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 5-104549-7 | Gold | 50 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 1-104549-0 | Gold | 100 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin-Lead | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 5-104549-6 | Gold | 40 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 5-104549-1 | Gold | 10 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
TE Connectivity AMP Connectors 6-104549-1 | Gold | 12 | 30 VAC | 0.125 in | 3.18 mm | Surface Mount | 2 | Header | 150 Áin | 3.81 Ám | 30 Áin | 0.76 Ám | Black | All | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | -65 ░C | 105 ░C | 0.435 in | 11.05 mm | Circular | 2.54 mm | 0.1 in | Polyphthalamide (PPA) | Board to Board, Cable | Latch Holder | Tin | Copper Alloy | Male Pin | Solder | UL94 V-0 |
Description
General part information
104549 Series
Connector Header Surface Mount 24 position 0.050" (1.27mm)
