2-1419158-8

Active

TE Connectivity AMP Connectors

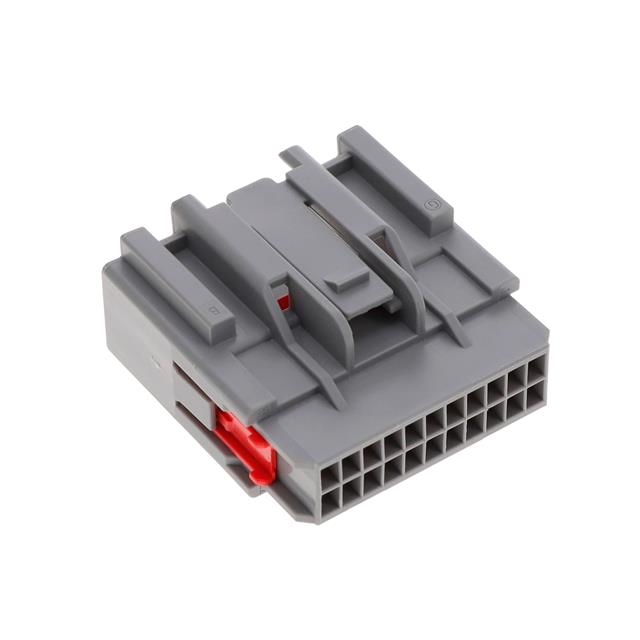

CONN PLUG HSG 22POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1419158-8	1419158 Series

	-	-
Color	Black	Black, Gray, Blue
Connector Type	Plug	Receptacle, Plug
Contact Finish	-	Gold, Tin
Contact Finish Thickness	-	31.5 µin
Contact Finish Thickness	-	0.8 µm
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Female Socket, Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled, Nylon, Polyamide (PA), Glass Filled, Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	22 positions	6 - 23
Number of Rows	2	1 - 2
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pin or Socket	-	Pin
Pitch	-	2.54 mm
Pitch	-	0.1 in
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Wire Gauge	-	20 - 24 AWG
Wire Gauge	-	17.5 - 22 AWG

1419158 Series

CONN RCPT HSG 6POS

Part	Number of Positions	Note	Insulation Material	Contact Termination	Contact Type	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Rows	Fastening Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 1419158-5	6	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Black	1
TE Connectivity AMP Connectors 2-1419158-8	22 positions	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Male Pin	Plug	Free Hanging (In-Line)	100 °C	-40 °C	Black	2	Locking Ramp
TE Connectivity AMP Connectors 1419158-1	6	Contacts Not Included	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)			Black	1
TE Connectivity AMP Connectors 1-1419158-7	22 positions	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Black	2
TE Connectivity AMP Connectors 3-1419158-1				Crimp									31.5 µin	0.8 µm	Gold	24 AWG	22 AWG	Pin
TE Connectivity AMP Connectors 1-1419158-4	10	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Black	2								0.1 in	2.54 mm	2.54 mm	0.1 in
TE Connectivity AMP Connectors 2-1419158-7	22 positions	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Male Pin	Plug	Free Hanging (In-Line)	100 °C	-40 °C	Black	2	Locking Ramp
TE Connectivity AMP Connectors 1-1419158-0
TE Connectivity AMP Connectors 1-1419158-9	23	Contacts Not Included	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Gray
TE Connectivity AMP Connectors 2-1419158-5				Crimp											Tin	20 AWG	17.5 AWG	Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.84
		10	$ 1.68
		25	$ 1.63
		50	$ 1.62
		100	$ 1.50
		250	$ 1.48
		500	$ 1.34
		1000	$ 1.20
		2500	$ 1.11

Description

General part information

1419158 Series

22 Rectangular Connectors - Housings Plug Black
