EVB_RT6219AGQW

Active

Richtek USA Inc.

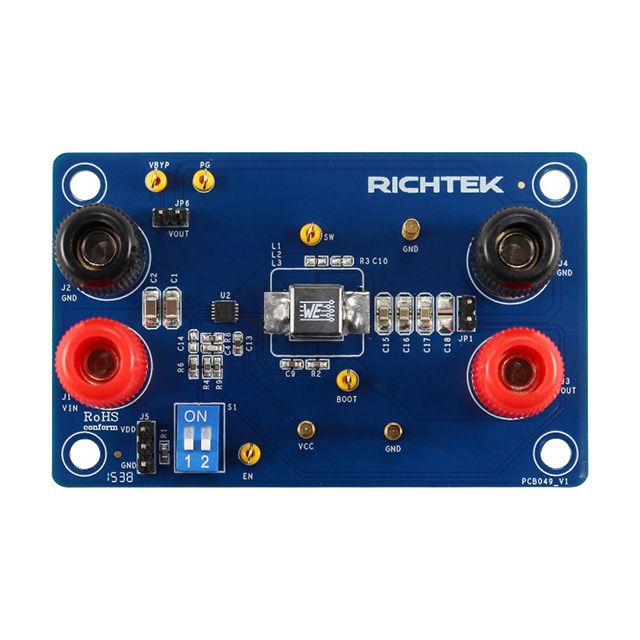

EVAL MODULE FOR RT6219AGQW

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT6219AGQW

Technical Specifications

Parameters and characteristics for this part

Part	Board Type	Utilized IC / Part	Frequency - Switching	Supplied Contents	Main Purpose	Current - Output	Outputs and Type	Outputs and Type	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Number of Outputs	Supplier Device Package	Function	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max)	Voltage - Output (Min/Fixed)	Synchronous Rectifier	Package / Case	Output Configuration	Output Type	Mounting Type
Richtek USA Inc. EVB_RT6219AGQW	Fully Populated	RT6219	500 kHz	Board(s)	DC/DC Step Down	4 A	Non-Isolated	1	5 V	5 V	23 V	Buck
Richtek USA Inc. RT6219AHGQW			500 kHz			4 A							1	10-WDFN (3x3)	Step-Down	5 V	23 V	Buck	85 °C	-40 °C	5 V	0.6 V		10-WFDFN Exposed Pad	Positive	Adjustable	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.19

General part information

RT6219 ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
