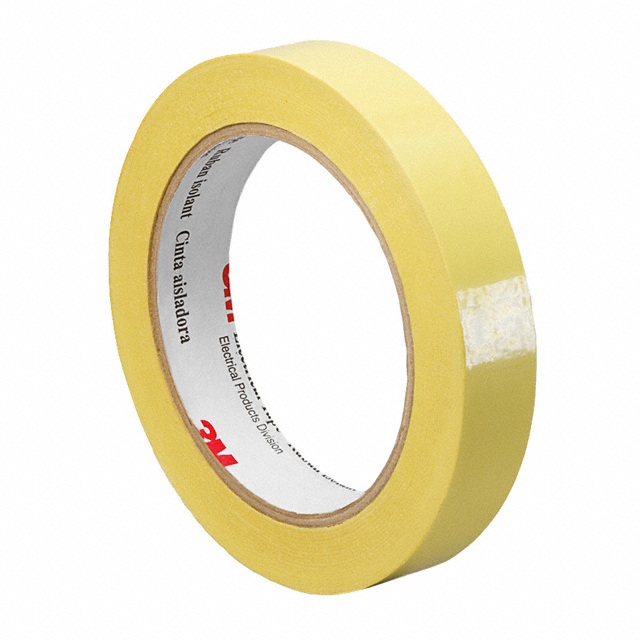

56-YELLOW-5/8"X72YD*

Active

3M (TC)

TAPE ELECTRICAL YLW 5/8"X72YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELECTRICAL YLW 5/8"X72YDS

Technical Specifications

Parameters and characteristics for this part

Specification	56-YELLOW-5/8"X72YD*

Adhesive	Rubber
Backing, Carrier	Polyester Film
Color	Yellow
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range	130 °C
Temperature Range	266 °F
Thickness	2.3 mils
Thickness	0.058 mm
Thickness	0.0023 in
Thickness - Adhesive	0.0013 "
Thickness - Adhesive	1.3 mils
Thickness - Adhesive	0.033 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Width	0.625 in
Width	0.63 in
Width	16 mm

Part	Temperature Range	Temperature Range	Shelf Life	Length	Length	Length	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Width [x]	Width [x]	Thickness	Thickness	Thickness	Backing, Carrier	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Shelf Life Start	Width	Width	Width
3M (TC) 56-YELLOW-1"X72YD*	130 °C	266 °F	60 Months	66 m	216 ft	72 yd	27 °C 80 °F	10 °C	Yellow	25.4 mm	1 in	2.3 mils	0.058 mm	0.0023 in	Polyester Film	Electrical	0.0013 "	1.3 mils	0.033 mm	1 mils	0.025 mm	0.001 "	Rubber	Date of Manufacture
3M (TC) 56-YELLOW-5/8"X72YD*	130 °C	266 °F	60 Months	66 m	216 ft	72 yd	27 °C 80 °F	10 °C	Yellow			2.3 mils	0.058 mm	0.0023 in	Polyester Film	Electrical	0.0013 "	1.3 mils	0.033 mm	1 mils	0.025 mm	0.001 "	Rubber	Date of Manufacture	0.625 in	0.63 in	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electrical Tape Rubber Adhesive Yellow 0.63" (16.00mm) 5/8" X 216' (66.0m) 72 yds
