Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1873-0-15-01-16-27-04-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.086 in
Flange Diameter [diameter]	2.18 mm
Length - Overall [x]	10.59 mm
Length - Overall [x]	0.417 "
Mounting Hole Diameter [diameter]	0.066 in
Mounting Hole Diameter [diameter]	1.68 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	5.59 mm
Socket Depth	0.22 in
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Press-Fit

1873-0 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Material
Mill-Max Manufacturing Corp. 1873-0-15-80-16-14-04-0	0.086 in	2.18 mm	10.59 mm	0.417 "	0.051 in	1.3 mm	Press-Fit	10 Áin	0.25 Ám	Standard Tail	0.02 in	0.51 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.066 in	1.68 mm	5.59 mm	0.22 in	Beryllium Copper
Mill-Max Manufacturing Corp. 1873-0-15-01-16-27-04-0	0.086 in	2.18 mm	10.59 mm	0.417 "	0.051 in	1.3 mm	Press-Fit	30 Áin	0.76 Ám	Standard Tail	0.02 in	0.51 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.066 in	1.68 mm	5.59 mm	0.22 in	Beryllium Copper
Mill-Max Manufacturing Corp. 1873-0-15-15-16-27-04-0	0.086 in	2.18 mm	10.59 mm	0.417 "	0.051 in	1.3 mm	Press-Fit	30 Áin	0.76 Ám	Standard Tail	0.02 in	0.51 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.066 in	1.68 mm	5.59 mm	0.22 in	Beryllium Copper
Mill-Max Manufacturing Corp. 1873-0-15-01-16-01-04-0	0.086 in	2.18 mm	10.59 mm	0.417 "	0.051 in	1.3 mm	Press-Fit	200 Áin	5.08 Ám	Standard Tail	0.02 in	0.51 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	0.64 mm	0.025 in	-55 °C	125 °C	Tin-Lead	0.066 in	1.68 mm	5.59 mm	0.22 in	Beryllium Copper
Mill-Max Manufacturing Corp. 1873-0-15-01-16-14-04-0	0.086 in	2.18 mm	10.59 mm	0.417 "	0.051 in	1.3 mm	Press-Fit	10 Áin	0.25 Ám	Standard Tail	0.02 in	0.51 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.066 in	1.68 mm	5.59 mm	0.22 in	Beryllium Copper
Mill-Max Manufacturing Corp. 1873-0-15-80-16-80-04-0	0.086 in	2.18 mm	10.59 mm	0.417 "	0.051 in	1.3 mm	Press-Fit	200 Áin	5.08 Ám	Standard Tail	0.02 in	0.51 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	0.64 mm	0.025 in	-55 °C	125 °C	Tin	0.066 in	1.68 mm	5.59 mm	0.22 in	Beryllium Copper
Mill-Max Manufacturing Corp. 1873-0-15-80-16-27-04-0	0.086 in	2.18 mm	10.59 mm	0.417 "	0.051 in	1.3 mm	Press-Fit	30 Áin	0.76 Ám	Standard Tail	0.02 in	0.51 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	0.64 mm	0.025 in	-55 °C	125 °C	Gold	0.066 in	1.68 mm	5.59 mm	0.22 in	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.37
		10	$ 1.19
		25	$ 1.14
		50	$ 1.11
		100	$ 1.06
		250	$ 0.96
		500	$ 0.88
		1000	$ 0.76
		3000	$ 0.71

Description

General part information

1873-0 Series

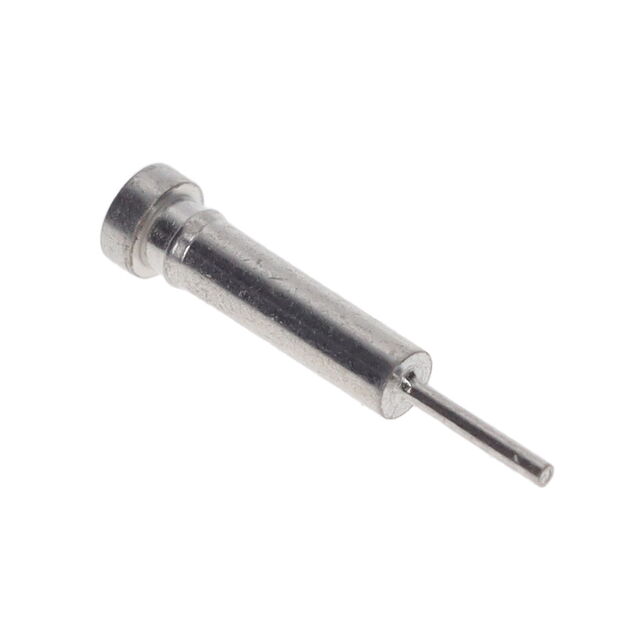

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Standard Tail Press-Fit
