BC4AA Series

Part	Termination Length	Termination Style	Number of Cells	Mounting Type	Style	Function	Battery Type	Battery Cell Size	Height Above Board	Operating Temperature (Min)	Operating Temperature (Max)
MPD (Memory Protection Devices) BC4AAW	6 in	Wire Leads	4	Chassis Mount	Holder (Open)	Holder	Cylindrical	AA	0.61 in	-10 °C	100 °C
MPD (Memory Protection Devices) BC4AAAW	6 in	Wire Leads	4	Chassis Mount	Holder (Open)	Holder	Cylindrical	AAA		-10 °C	100 °C
MPD (Memory Protection Devices) BC4AAAPC		PC Pin	4	PCB Through Hole	Holder (Open)	Holder	Cylindrical	AAA	0.48 in
MPD (Memory Protection Devices) BC4AASF		9 Volt Snap Fasteners 9V Snap Connector	4	Chassis Mount	Holder (Open)	Holder	Cylindrical	AA		-10 °C	100 °C
MPD (Memory Protection Devices) BC4AAPC		PC Pin	4	PCB Through Hole	Holder (Open)	Holder	Cylindrical	AA	0.61 in	-10 °C	100 °C

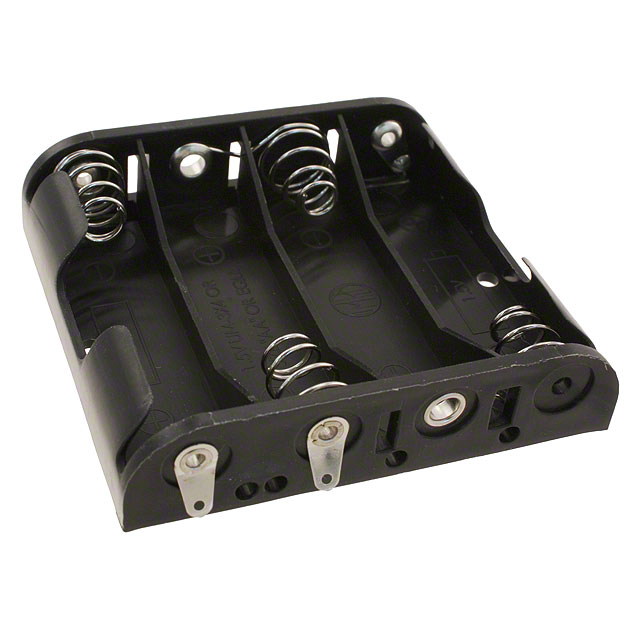

MPD (Memory Protection Devices) BC4AAL		Solder Lug	4	Chassis Mount	Holder (Open)	Holder	Cylindrical	AA		-10 °C	100 °C
MPD (Memory Protection Devices) BC4AAAL		Solder Lug	4	Chassis Mount	Holder (Open)	Holder	Cylindrical	AAA		-10 °C	100 °C
MPD (Memory Protection Devices) BC4AAB		SMD (SMT) Tab	4	PCB Surface Mount	Holder (Open)	Holder	Cylindrical	AA	0.608 in	-10 °C	100 °C
