43-00096

Active

Amphenol CONEC

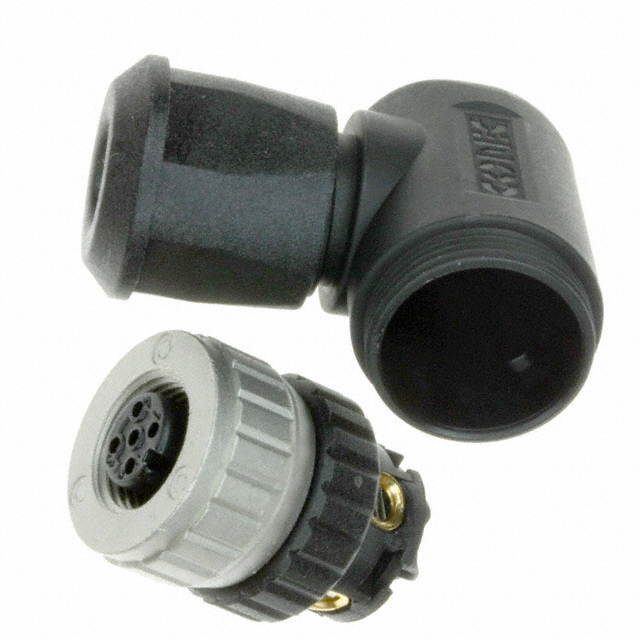

SENSOR CONN, M12, R/A RCPT, 4POS, CABLE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

SENSOR CONN, M12, R/A RCPT, 4POS, CABLE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	43-00096

Backshell Material, Plating	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA6), Nylon 6
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Plastic
Shell Material	Polyamide (PA6), Nylon 6, Glass Filled
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Connector Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Color	Insert Material	Mounting Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Size - Insert	Shell Material	Orientation	Termination	Current Rating (Amps)	Backshell Material, Plating	Primary Material	Material Flammability Rating	Features	Shielding	Contact Material	Number of Positions
Amphenol CONEC 43-00094	Gold	Female Sockets Plug	IP67 - Dust Tight Waterproof	-30 ░C	85 °C	60 VDC	Black Silver	Polyamide (PA6) Nylon 6	Free Hanging (In-Line)	8 mm	6 mm	0.315 in	0.236 in	M12-5	Polyamide (PA6) Nylon 6 Glass Filled	A	Screw	4 A	Glass Filled Nylon 6 Polyamide (PA6)	Plastic	UL94	Backshell Coupling Nut	Unshielded	Copper Zinc
Amphenol CONEC 43-00096	Gold	Female Sockets Plug	IP67 - Dust Tight Waterproof	-30 ░C	85 °C	250 VDC	Black Silver	Polyamide (PA6) Nylon 6	Free Hanging (In-Line) Right Angle	8 mm	6 mm	0.315 in	0.236 in	M12-4	Polyamide (PA6) Nylon 6 Glass Filled	A	Screw	4 A	Glass Filled Nylon 6 Polyamide (PA6)	Plastic	UL94	Coupling Nut	Unshielded	Copper Zinc	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Screw
