9613-1563-009

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE JACK FEMALE SO

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE JACK FEMALE SO

Technical Specifications

Parameters and characteristics for this part

Specification	9613-1563-009

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Impedance	Dielectric Material	Connector Style	Mating Cycles	Cable Group	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Feature	Center Contact Material	Connector Type	Mounting Type	Number of Ports	Center Contact Plating	Body Finish	Frequency - Max [Max]	Voltage Rating	Body Material	Housing Color
Radiall USA, Inc. 9613-1563-010	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	500	RG-405 (.085" Semi Rigid)	Solder	-65 ░C	105 ░C	Solder	Bulkhead - Front Side Nut	Beryllium Copper	Female Socket Jack	Panel Mount Right Angle	1	Gold	Gold	18 GHz	350 V	Stainless Steel	Gold
Radiall USA, Inc. 9613-1563-009	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	500		Solder	-65 ░C	105 ░C	Solder	Bulkhead - Front Side Nut	Beryllium Copper	Female Socket Jack	Panel Mount Right Angle	1	Gold	Gold	18 GHz	500 V	Stainless Steel	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 43.68

General part information

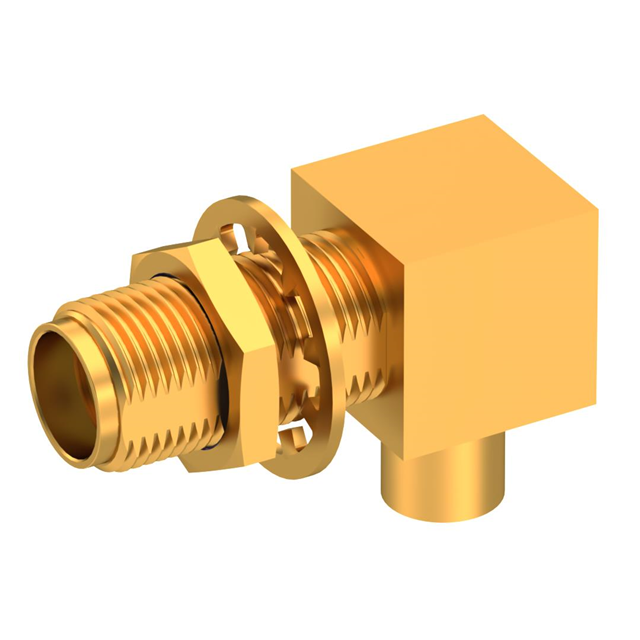

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder
