DLCBSAT-5-01
ActiveEssentra Access Solutions
CBS DUAL LOCK ARROW/TEARDR 5/16"
Deep-Dive with AI
Search across all available documentation for this part.
DLCBSAT-5-01
ActiveEssentra Access Solutions
CBS DUAL LOCK ARROW/TEARDR 5/16"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLCBSAT-5-01 |
|---|---|
| Between Board Height | 0.3125 in |
| Between Board Height | 7.95 mm |
| Between Board Height | 0.313 " |
| Features | Winged |
| Holding Type | Snap Lock |
| Length - Overall | 17.53 mm |
| Length - Overall [x] | 0.69 in |
| Material | Nylon |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 3.18 mm |
| Mounting Panel Thickness [Max] | 1.98 mm |
| Mounting Panel Thickness [Max] | 0.078 " |
| Mounting Panel Thickness [Min] | 0.79 mm |
| Mounting Panel Thickness [Min] | 0.031 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 2.54 mm |
| Support Hole Diameter [diameter] | 0.1 in |
| Support Panel Thickness | 1.63 mm |
| Support Panel Thickness | 0.064 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.41 | |
| 5 | $ 0.35 | |||
| 10 | $ 0.29 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.20 | |||
Description
General part information
DLCBSAT Series

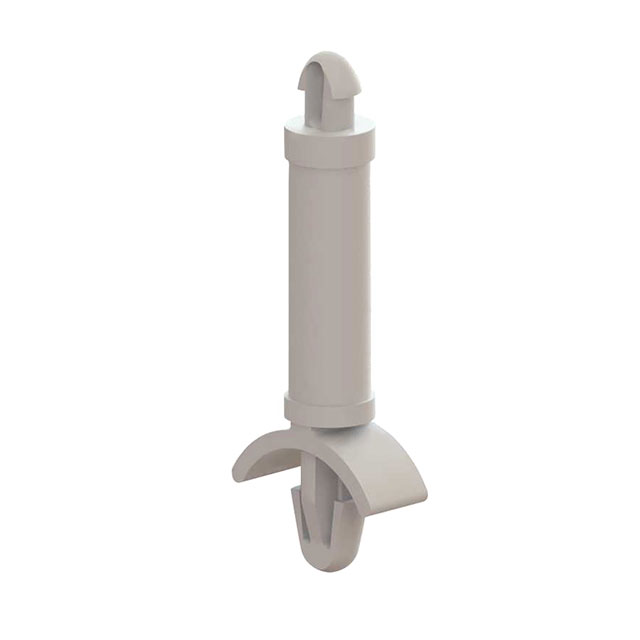

Board Support Snap Lock / Snap Lock Nylon 0.313" (7.95mm) 5/16"
