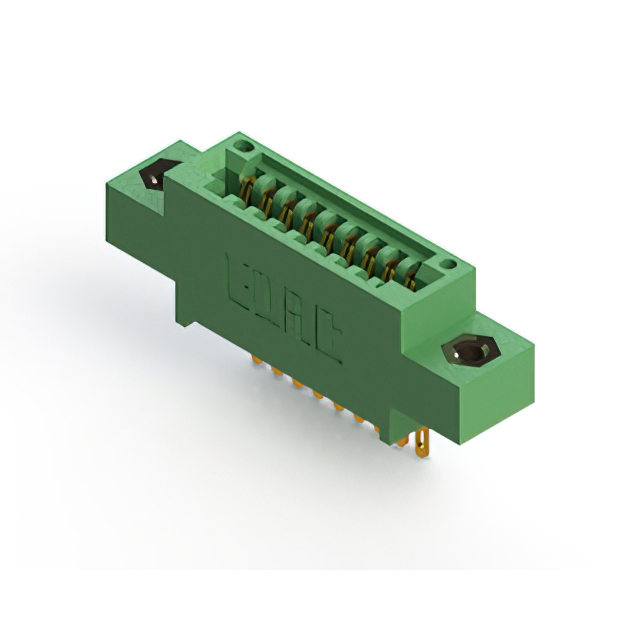

845-009-500-608

Active

EDAC Inc.

845 HIGH TEMP' SERIES (.100" (2.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-009-500-608

Active

EDAC Inc.

845 HIGH TEMP' SERIES (.100" (2.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-009-500-608

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	9
Number of Positions/Bay/Row [custom]	9
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

845-009 Series

...

Part	Flange Feature	Card Type	Contact Type	Contact Material	Material - Insulation	Color	Gender	Pitch [x]	Pitch [x]	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Read Out	Contact Finish	Termination Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-009-500-608	4-40 Threaded Insert Top Mount Opening	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C
EDAC Inc. 845-009-500-402		Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 845-009-559-402		Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	Gold	1	Through Hole Right Angle	10 Áin	0.25 Ám	1	9	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 845-009-540-404	Top Mount Opening Unthreaded	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C			0.156 in	3.96 mm
EDAC Inc. 845-009-542-403	Floating Bobbin Top Mount Opening	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C			0.116 in	2.95 mm
EDAC Inc. 845-009-544-103	Floating Bobbin Flush Mount	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C			0.116 in	2.95 mm
EDAC Inc. 845-009-523-108	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C
EDAC Inc. 845-009-525-103	Floating Bobbin Flush Mount	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C			0.116 in	2.95 mm
EDAC Inc. 845-009-559-104	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	Gold	1	Through Hole Right Angle	10 Áin	0.25 Ám	1	9	125 °C	-40 °C			0.156 in	3.96 mm
EDAC Inc. 845-009-500-103	Floating Bobbin Flush Mount	Non Specified - Single Edge	Cantilever	Copper Alloy	Diallyl Phthalate (DAP)	Green	Female	2.54 mm	0.1 in	9	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Single	Gold	1	Through Hole	10 Áin	0.25 Ám	1	9	125 °C	-40 °C			0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 90.01
Newark	Each	1	$ 103.91
		100	$ 64.23
		250	$ 55.77
		500	$ 48.68
		1000	$ 38.63

Description

General part information

845-009 Series

9 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
