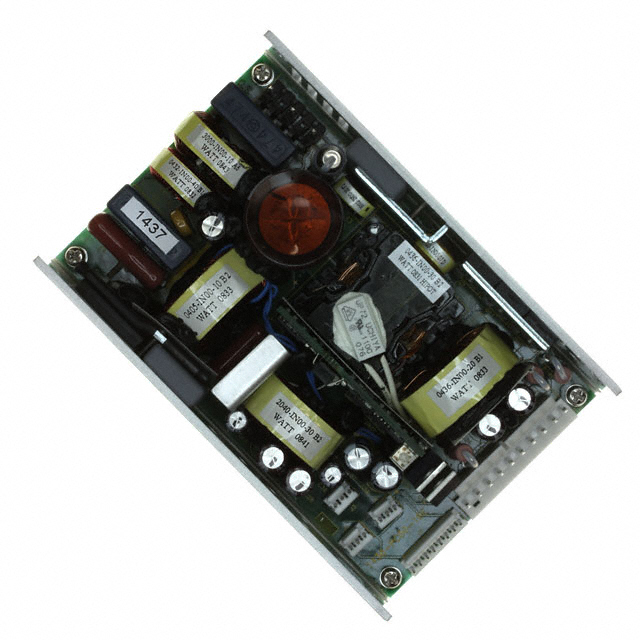

CF200-A12C

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 200W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	CF200-A12C

Applications	ITE (Commercial)
Approval Agency	cUR, CE
Current - Output 1	16.6 A
Efficiency	86 %
Features	Universal Input, PFC, Remote Sense, Load Sharing, Adjustable Output, Hot Swappable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-5 °C
Power (Watts)	200 W
Size / Dimension [x]	83.8 mm
Size / Dimension [x]	3.3 "
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Type	Open Frame
Voltage - Output 1	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

AC/DC CONVERTER 12V 200W

Part	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Applications	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Mounting Type	Number of Outputs	Power (Watts)	Type
Murata Power Solutions Inc. CF200-A12C	CE, cUR	127 mm	83.8 mm	3.3 "	5 "	38.1 mm	1.5 "	12 V	ITE (Commercial)	86 %	Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote Sense, Universal Input	50 °C	-5 °C	16.6 A	Chassis Mount	1	200 W	Open Frame

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input

Technical documentation and resources
