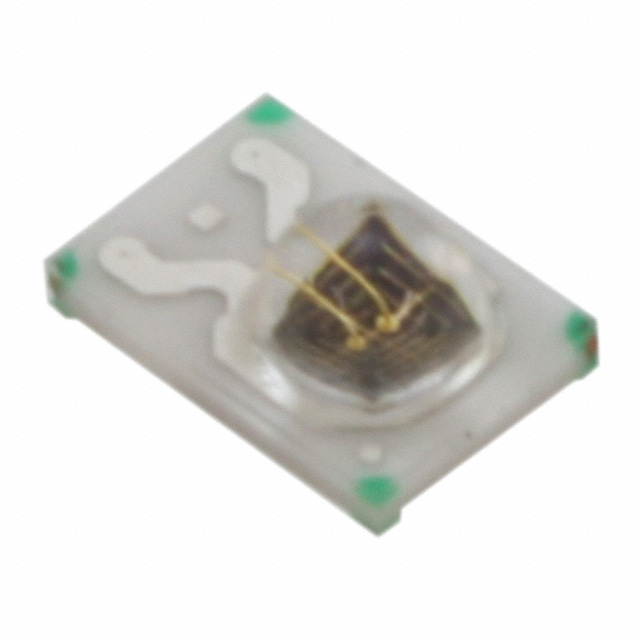

HIR-C06/L298-P01/TR
ActiveEverlight Electronics Co Ltd
EMITTER IR 850NM 700MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HIR-C06/L298-P01/TR
ActiveEverlight Electronics Co Ltd
EMITTER IR 850NM 700MA SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HIR-C06/L298-P01/TR |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If [Min] | 40 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.69 | |
| Digi-Reel® | 1 | $ 8.69 | ||
| Tape & Reel (TR) | 1200 | $ 4.31 | ||
| 2000 | $ 4.21 | |||
Description
General part information
HIR-C06 Series
Infrared (IR) Emitter 850nm 1.7V 700mA 40mW/sr @ 350mA 120° 3-SMD, No Lead
