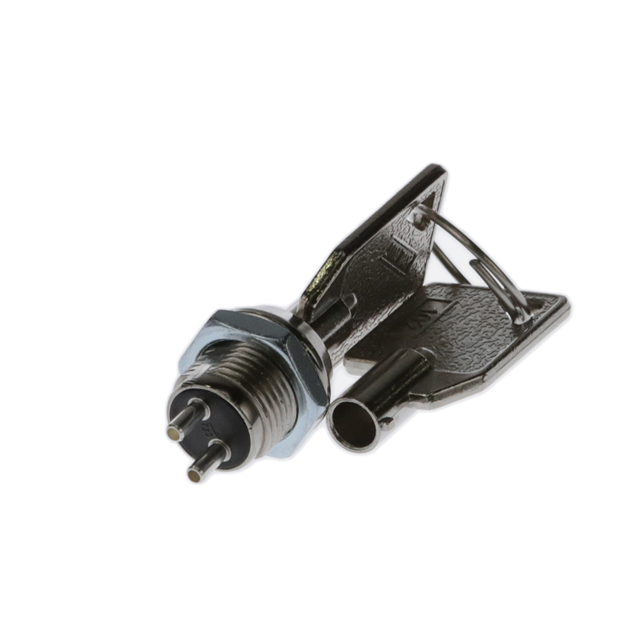

KO106A102

Active

E-Switch

KEYLOCK SWITCH, SPST, 2 POSITION, SOLDER, 1 A

Search across all available documentation for this part.

Active

E-Switch

KEYLOCK SWITCH, SPST, 2 POSITION, SOLDER, 1 A

Technical Specifications

Parameters and characteristics for this part

Specification	KO106A102

Actuator Type	Tubular Key
Angle of Throw	90 °
Circuit	SPST
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	1 A
Depth Behind Flange	15.3 mm
Key Removable Positions	All
Number of Positions	2
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Key Removable Positions	Switch Function	Current Rating (Amps)	Contact Finish	Angle of Throw	Number of Positions	Contact Material	Depth Behind Flange	Contact Timing	Termination Style
E-Switch KO106A102	Tubular Key	SPST	12 mm	125 V	All	Off-On	1 A	Silver	90 °	2	Copper Alloy	15.3 mm	Not Specified	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPST 1A (AC) 125 VAC DC Panel Mount
