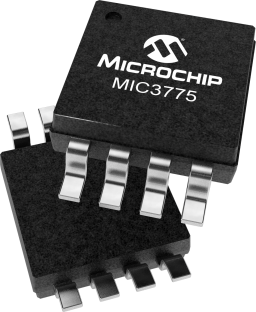

MIC3775-3.3YMM

Active

Microchip Technology

750MA LOW VOLTAGE UCAP LDO 8 MSOP 3X3MM TUBE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMIC3775 -750mA µCap Low-Voltage Low-Dropout Regulator Datasheet

MIC3775-3.3YMM

Active

Microchip Technology

750MA LOW VOLTAGE UCAP LDO 8 MSOP 3X3MM TUBE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsMIC3775 -750mA µCap Low-Voltage Low-Dropout Regulator Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIC3775-3.3YMM

Control Features	Enable
Current - Output	750 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
Protection Features	Over Current, Over Temperature
Supplier Device Package	8-MSOP
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.5 V

MIC3775 Series

750mA Low Voltage uCap LDO

Part	Protection Features	Number of Regulators	Package / Case	Package / Case [custom]	Package / Case	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Output Type	Control Features	Current - Output	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Mounting Type	Output Type
Microchip Technology MIC3775-1.5YMM-TR	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	1.5 V	1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775YMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	1.24 V		Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount	Adjustable
Microchip Technology MIC3775-3.3YMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	3.3 V	1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775-2.5YMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	2.5 V	1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775-1.5BMMTS	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	1.5 V	1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775-1.65BMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	1.65 V	1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775-3.0YMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C		1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775-1.8YMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	1.8 V	1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775-3.0BMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C		1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount
Microchip Technology MIC3775-2.5BMM	Over Current Over Temperature	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive	125 °C	-40 °C	2.5 V	1.81 mOhm	Enable	750 mA	8-MSOP	6 V	0.5 V	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.27
		25	$ 1.90
		100	$ 1.72
Microchip Direct	TUBE	1	$ 2.27
		25	$ 1.90
		100	$ 1.72
		1000	$ 1.44
		5000	$ 1.32
		10000	$ 1.24
Newark	Each	100	$ 1.78

Description

General part information

MIC3775 Series

The MIC3775 is a 750mA low dropout linear voltage regulator that provides low-voltage, high-current output from an extremely small package. Utilizing proprietary Superβeta PNP® pass element, the MIC3775 offers extremely low dropout (typically 280mV at 750mA) and low ground current (typically 7.5mA at 750mA).

The MIC3775 is ideal for PC add-in cards that need to convert from standard 5V to 3.3V or 3.0V, 3.3V to 2.5V, or 2.5V to 1.8V or 1.65V. A guaranteed maximum dropout voltage of 500mV over all operating conditions allows the MIC3775 to provide 2.5V from a supply as low as 3.0V and 1.8V or 1.5V from a supply as low as 2.25V.

The MIC3775 is fully protected with overcurrent limiting, thermal shutdown, and reverse leakage protection. Fixed and adjustable output voltage options are available with an operating temperature range of -40°C to +125°C.

Documents

Technical documentation and resources

MIC3775 -750mA µCap Low-Voltage Low-Dropout Regulator

Data Sheets
