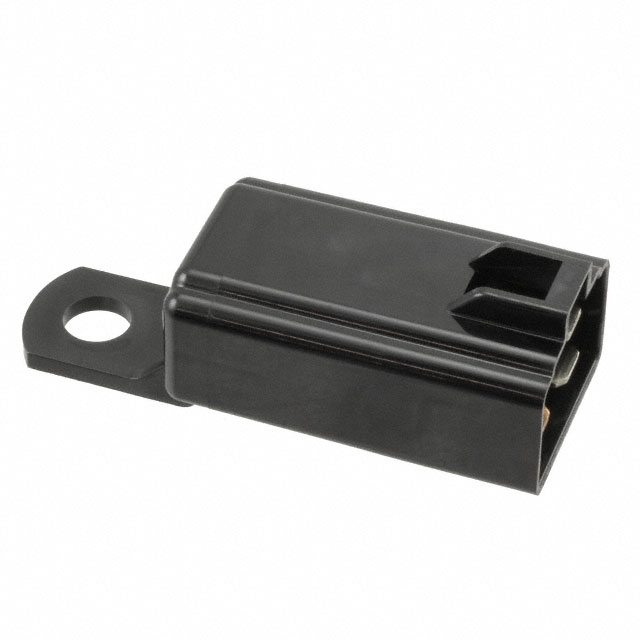

CA1ASR-12V-N-5
ActivePanasonic Electric Works
CA RELAY 1 FORM A 12V
Deep-Dive with AI
Search across all available documentation for this part.
CA1ASR-12V-N-5
ActivePanasonic Electric Works
CA RELAY 1 FORM A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CA1ASR-12V-N-5 |
|---|---|
| Coil Current | 120 mA |
| Coil Power | 1.4 W |
| Coil Resistance | 100 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 20 A |
| Features | Resistor |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Release Time | 10 ms |
| Switching Voltage | 16 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.98 | |
| 20 | $ 4.66 | |||
| 40 | $ 3.94 | |||
| 100 | $ 3.73 | |||
| 260 | $ 3.65 | |||
Description
General part information
CA1ASR Series
CA RELAY 1 FORM A 12V
