IDSD-07-D-25.00-G-R

Active

INSULATION DISPLACEMENT TERMINAL

Active

INSULATION DISPLACEMENT TERMINAL

Description

General part information

14 Position Cable Assembly Rectangular Socket to Socket, Reversed 2.08' (635.00mm)

Parameters and characteristics for this part

...

Part	Color	Pitch - Cable	Cable Termination	Connector Type	Contact Finish	Length	Shielding	Pitch - Connector	Number of Rows	Number of Positions
Samtec Inc. IDSD-07-D-25.00-G-R	Gray Ribbon	0.05 in	IDC	Reversed Socket to Socket	Gold	2.08 ft	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-S-08.00-ST8	Multiple Ribbon	0.05 in	IDC	Socket to Cable	Gold	0.667 ft	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-D-24.00-G	Gray Ribbon	0.05 in	IDC	Socket to Socket	Gold	24 in	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-S-14.00-G	Gray Ribbon	0.05 in	IDC	Socket to Cable	Gold	1.17 ft	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-S-03.00-T-ST8	Multiple Ribbon	0.05 in	IDC	Socket to Cable	Tin	3 "	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-D-10.00-R	Multiple Ribbon	0.05 in	IDC	Reversed Socket to Socket	Gold	0.833 ft	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-D-08.00-G	Gray Ribbon	0.05 in	IDC	Socket to Socket	Gold	0.667 ft	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-D-10.00	Multiple Ribbon	0.05 in	IDC	Socket to Socket	Gold	0.833 ft	Unshielded	0.1 in	2	14
Samtec Inc. IDSD-07-D-09.50	Multiple Ribbon	0.05 in	IDC	Socket to Socket	Gold	0.792 ft	Unshielded	0.1 in	2	14

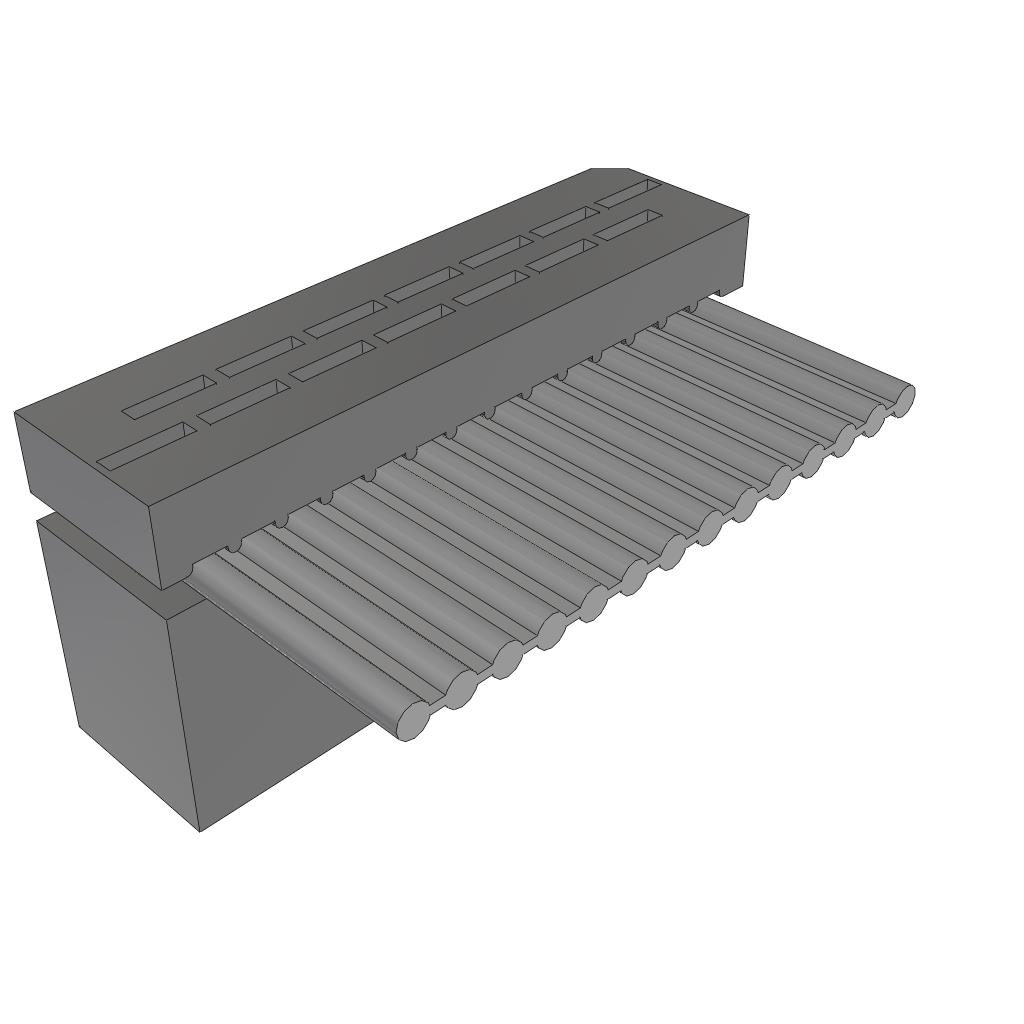

Samtec Inc. IDSD-07-S-08.00-T	Multiple Ribbon	0.05 in	IDC	Socket to Cable	Tin	0.667 ft	Unshielded	0.1 in	2	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
