2N6284

Active

STMicroelectronics

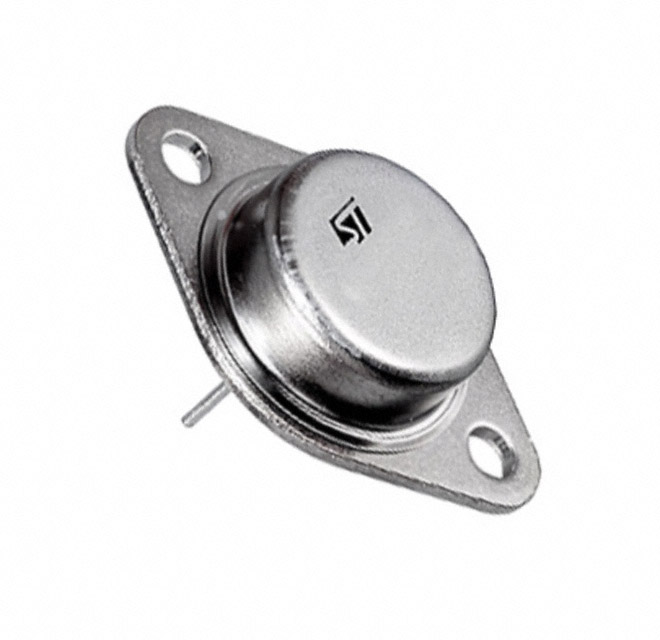

TRANS NPN DARL 100V 20A TO-3

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS NPN DARL 100V 20A TO-3

Technical Specifications

Parameters and characteristics for this part

Specification	2N6284

Current - Collector (Ic) (Max)	20 A
Current - Collector Cutoff (Max) [Max]	1 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	750 hFE
Mounting Type	Chassis Mount
Operating Temperature	200 °C
Package / Case	TO-3, TO-204AA
Power - Max [Max]	160 W
Vce Saturation (Max) @ Ib, Ic	3 V
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 61.78

TRANS NPN DARL 100V 20A TO-3

Part	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Current - Collector (Ic) (Max)	Vce Saturation (Max) @ Ib, Ic	Package / Case	Mounting Type
STMicroelectronics 2N6284	1 mA	750 hFE	160 W	100 V	200 °C	20 A	3 V	TO-204AA, TO-3	Chassis Mount

General part information

Bipolar (BJT) Transistor NPN - Darlington 100 V 20 A 160 W Chassis Mount TO-3
