CONFIG SW BODY PUSHBUTTON ILLUM
Search across all available documentation for this part.
CONFIG SW BODY PUSHBUTTON ILLUM
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information

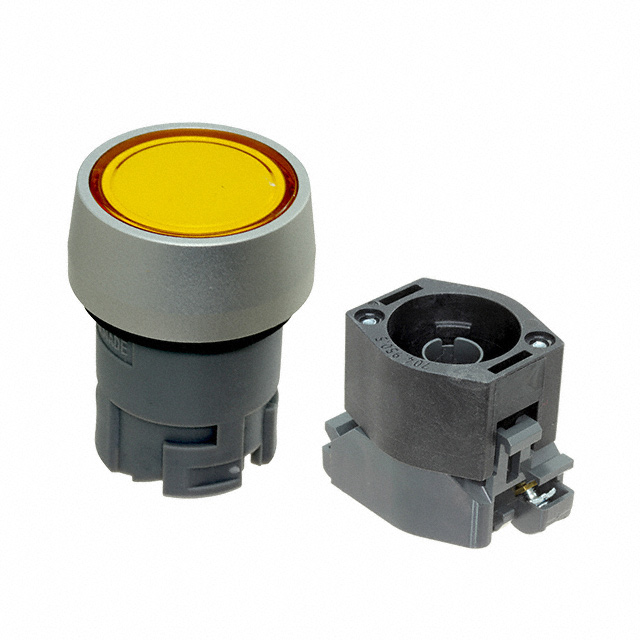

Configurable Switch Body Pushbutton, Round Illuminated - Yellow
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 704.032.4 | 704.032 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | Pushbutton, Round | Pushbutton, Round |
| Illumination | Illuminated - Yellow | Illuminated, Illuminated - Green, Illuminated - Yellow |
| Panel Cutout Dimensions | 22.3 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Momentary | Momentary |
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | Requires | (Select First, Then Apply Filters) Compatible Series | Actuator Type | Type | Panel Cutout Dimensions | Illumination |
|---|---|---|---|---|---|---|
EAO 704.032.2 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | |
EAO 704.032.7 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | Illuminated |
EAO 704.032.5 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | Illuminated - Green |
EAO 704.032.218 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 30.5 mm | |
EAO 704.032.418 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 30.5 mm | Illuminated - Yellow |
EAO 704.032.4 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | Illuminated - Yellow |
