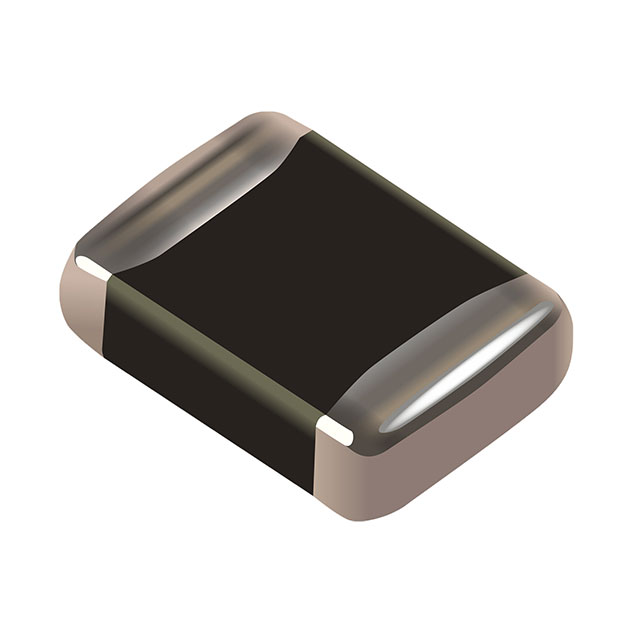

AV30K1812801NIR2
ActiveBourns Inc.
MOV 30 K 1812 801 NI R2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AV30K1812801NIR2
ActiveBourns Inc.
MOV 30 K 1812 801 NI R2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AV30K1812801NIR2 |
|---|---|
| Capacitance @ Frequency | 2200 pF |
| Current - Surge | 800 A |
| Energy | 3.8 J |
| Maximum AC Volts [Max] | 30 V |
| Maximum DC Volts [Max] | 34 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Varistor Voltage (Max) [Max] | 51.7 V |
| Varistor Voltage (Min) [Min] | 42.3 V |
| Varistor Voltage (Typ) | 47 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 8000 | $ 0.27 | |
Description
General part information
AV30K Series
47 V 800 A Varistor 1 Circuit Surface Mount, MLCV 1812 (4532 Metric)
