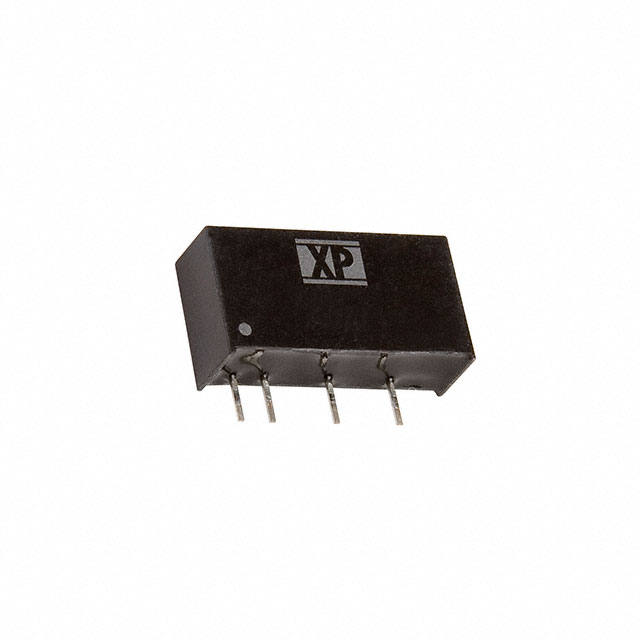

ITB1205S
ActiveXP POWER
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ITB1205S
ActiveXP POWER
DC DC CONVERTER 5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ITB1205S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 80 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [x] | 0.77 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.24 in |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.52 | |
| 5 | $ 7.29 | |||
| 10 | $ 7.07 | |||
| 25 | $ 6.77 | |||
| 100 | $ 6.32 | |||
Description
General part information
ITB1205 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
