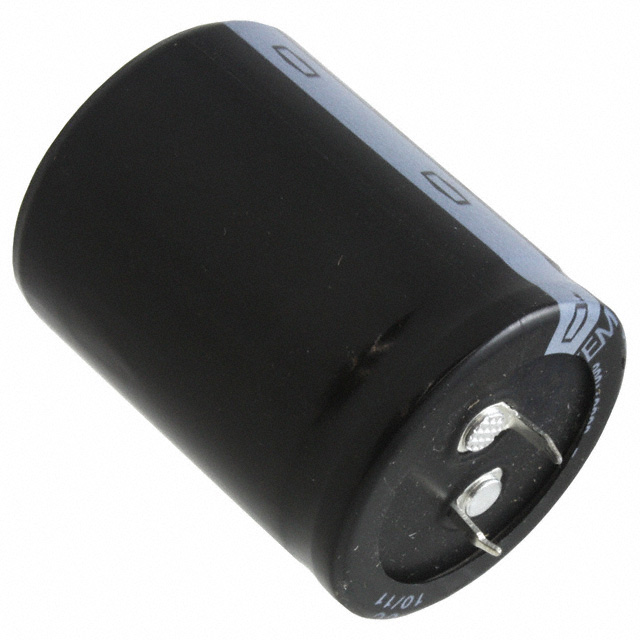

ELH477M450AT6AA

Active

KEMET

CAP ALUM 470UF 20% 450V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 470UF 20% 450V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	ELH477M450AT6AA

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	145 mOhm
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	3.625 A
Ripple Current @ Low Frequency	2.5 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	450 V

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Applications	Ripple Current @ High Frequency	Tolerance	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Capacitance
KEMET ELH477M450AT6AA	Through Hole	2.047 in	52 mm	2000 Hrs	1.378 in	35 mm	450 V	Radial Can - Snap-In	0.394 in	10 mm	-25 °C	85 °C	Polar	General Purpose	3.625 A	20 %	2.5 A	145 mOhm	470 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 145mOhm @ 20kHz 2000 Hrs @ 85°C
