10119332-101A08LF

Active

Amphenol ICC (FCI)

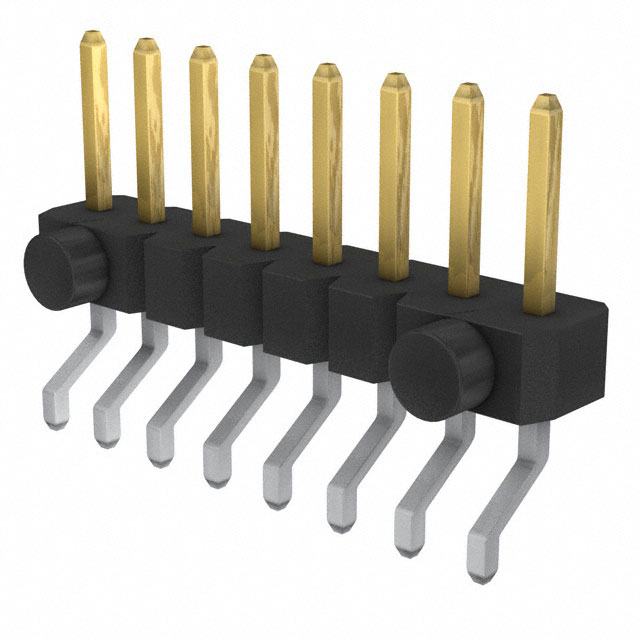

CONN HEADER SMD R/A 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet bus-12-059 Other Related Document

10119332-101A08LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD R/A 8POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet bus-12-059 Other Related Document

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10119332-101A08LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	3.81 mm
Insulation Height	0.15 in
Insulation Material	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

10119332 Series

Part	Number of Positions	Fastening Type	Contact Shape	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Insulation Material	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Mounting Type	Number of Positions Loaded	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Features	Contact Length - Mating [x]	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Length - Mating [x]	Material Flammability Rating	Contact Length - Mating
Amphenol ICC (FCI) 10119332-101A08LF	8	Push-Pull	Square	3 A	Gold or Gold GXT™	Black	Tin	Thermoplastic	1	3.81 mm	0.15 in	30 Áin	0.76 Ám	Unshrouded	Surface Mount Right Angle	All	Solder	2 çm	78.7 çin	Copper Alloy	Board Guide Pick and Place	0.23 in	5.84 mm	0.1 in	2.54 mm	Breakaway Header	125 °C	-65 ░C	Male Pin
Amphenol ICC (FCI) 10119332-402A03LF		Push-Pull	Square	3 A		Black	Tin	Thermoplastic	1	3.81 mm	0.15 in	78.7 µin	2 µm	Unshrouded	Surface Mount Right Angle	All	Solder	2 çm	78.7 çin	Copper Alloy	Board Guide Pick and Place	0.318 "		0.1 in	2.54 mm	Breakaway Header	125 °C	-65 ░C	Male Pin	8.08 mm	UL94 V-0
Amphenol ICC (FCI) 10119332-403A05LF		Push-Pull	Square	3 A		Black	Tin	Thermoplastic	1	3.81 mm	0.15 in	78.7 µin	2 µm	Unshrouded	Surface Mount Right Angle	All	Solder	2 çm	78.7 çin	Copper Alloy	Board Guide Pick and Place		10.67 mm	0.1 in	2.54 mm	Breakaway Header	125 °C	-65 ░C	Male Pin			0.42 in
Amphenol ICC (FCI) 10119332-403-06LF	6	Push-Pull	Square	3 A		Black	Tin	Thermoplastic	1	3.81 mm	0.15 in	78.7 µin	2 µm	Unshrouded	Surface Mount Right Angle	All	Solder	2 çm	78.7 çin	Copper Alloy	Board Guide		10.67 mm	0.1 in	2.54 mm	Breakaway Header	125 °C	-65 ░C	Male Pin			0.42 in
