TSE-P-5A

Active

OptiFuse

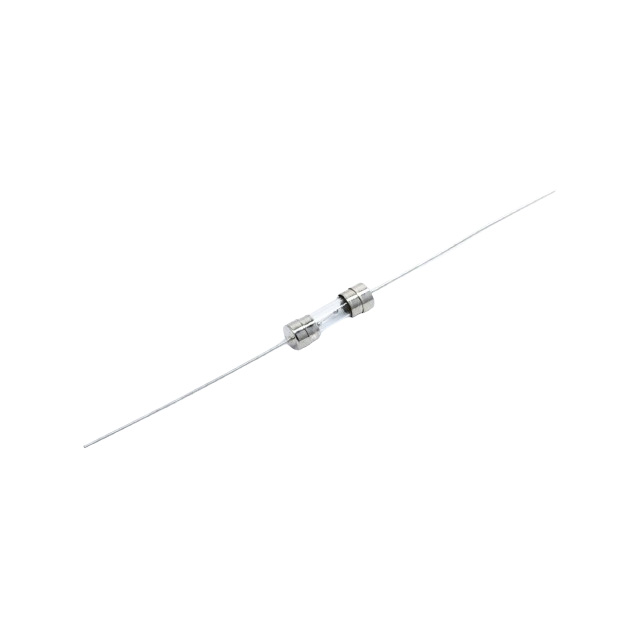

FUSE GLASS 5A 250VAC 2AG

Search across all available documentation for this part.

Active

OptiFuse

FUSE GLASS 5A 250VAC 2AG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSE-P-5A	TSE-P Series

Approval Agency	cURus, UL 248	UL 248, cURus, UL 248
Breaking Capacity @ Rated Voltage	100 A	100 A
Current Rating (Amps)	5 A	1.5 - 8 A
Melting I˛t	37.27	6.635 - 147.9
Melting I²t	-	9.83
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2AG	2AG
Package / Case [x]	5 mm	5 mm
Package / Case [y]	15 mm	15 mm
Response Time	Slow Blow	Slow Blow
Size / Dimension [diameter]	5 mm	5 mm
Size / Dimension [diameter]	0.197 "	0.197 "
Size / Dimension [z]	16 mm	16 mm
Size / Dimension [z]	0.63 "	0.63 "
Voltage Rating - AC	250 V	250 V

FUSE GLASS 1.5A 250VAC 2AG

Part	Melting I˛t	Breaking Capacity @ Rated Voltage	Response Time	Voltage Rating - AC	Package / Case [x]	Package / Case [y]	Package / Case	Approval Agency	Current Rating (Amps)	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Melting I²t
OptiFuse TSE-P-1.5A	6.635	100 A	Slow Blow	250 V	5 mm	15 mm	2AG	UL 248	1.5 A	Through Hole	16 mm	0.63 "	5 mm	0.197 "	-55 °C	125 °C
OptiFuse TSE-P-8A	147.9	100 A	Slow Blow	250 V	5 mm	15 mm	2AG	cURus, UL 248	8 A	Through Hole	16 mm	0.63 "	5 mm	0.197 "	-55 °C	125 °C
OptiFuse TSE-P-3.15A		100 A	Slow Blow	250 V	5 mm	15 mm	2AG	UL 248	3.15 A	Through Hole	16 mm	0.63 "	5 mm	0.197 "	-55 °C	125 °C	9.83
OptiFuse TSE-P-5A	37.27	100 A	Slow Blow	250 V	5 mm	15 mm	2AG	cURus, UL 248	5 A	Through Hole	16 mm	0.63 "	5 mm	0.197 "	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.28

General part information

5 A 250 V AC DC Fuse Cartridge, Glass Through Hole 2AG, 5mm x 15mm (Axial)
