1067 SL002

Active

ALPHA WIRE

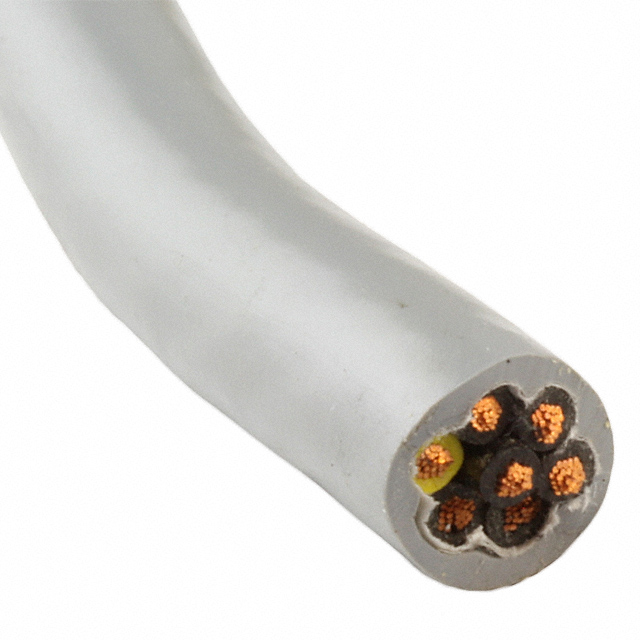

CABLE 7COND 16AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 7COND 16AWG SLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1067 SL002	1067 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Jacket (Insulation) Diameter [diameter]	11.89 mm	11.89 mm
Jacket (Insulation) Diameter [diameter]	0.468 in	0.468 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm	1.194 mm
Jacket (Insulation) Thickness	0.047 in	0.047 in
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	7	7
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

CABLE 7COND 16AWG SLATE

Part	Cable Type	Number of Conductors	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket Color	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE 1067 SL001	Multi-Conductor	7	Communication, Control	1.194 mm	0.047 in	Poly-Vinyl Chloride (PVC)	Slate	Copper, Tinned	600 V	11.89 mm	0.468 in	16 AWG	1000 ft	304.8 m	-20 C	80 C	Poly-Vinyl Chloride (PVC)	19	0.0117 in
ALPHA WIRE 1067 SL002	Multi-Conductor	7	Communication, Control	1.194 mm	0.047 in	Poly-Vinyl Chloride (PVC)	Slate	Copper, Tinned	600 V	11.89 mm	0.468 in	16 AWG			-20 C	80 C	Poly-Vinyl Chloride (PVC)	19	0.0117 in	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.20

General part information

7 Conductor Multi-Conductor Cable Slate 16 AWG 500.0' (152.4m)
