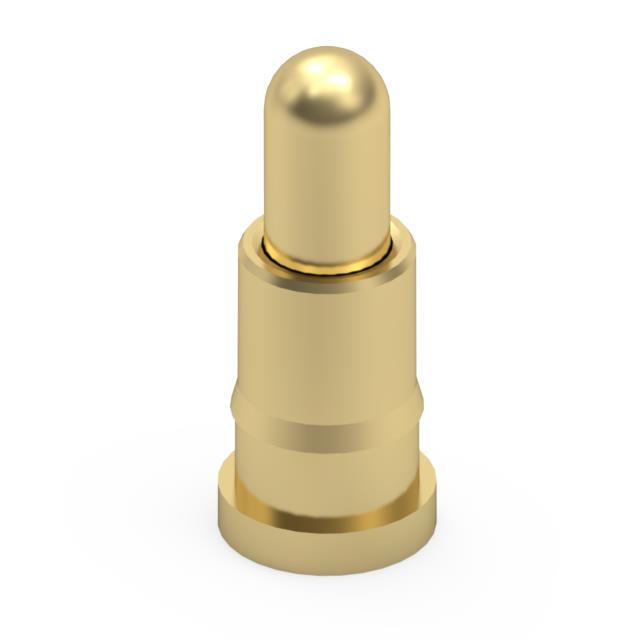

0900-1-57-20-75-14-11-0 - 0900-1-57-20-75-14-11-0

0900-1-57-20-75-14-11-0

Active
Mill-Max Manufacturing Corp.

SURFACE MOUNT SPRING-LOADED PIN

Deep-Dive with AI

Search across all available documentation for this part.

0900-1-57-20-75-14-11-0 - 0900-1-57-20-75-14-11-0

0900-1-57-20-75-14-11-0

Active
Mill-Max Manufacturing Corp.

SURFACE MOUNT SPRING-LOADED PIN

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification0900-1-57-20-75-14-11-0
Contact FinishGold
Contact Finish Thickness0.51 µm
Contact Finish Thickness20 µin
Contact MaterialBrass Alloy
Contact TypeSleeve & Plunger (Pogo Pins)
Current Rating (Amps)5.2 A
Mating Cycles1000000
Maximum Working Height [Max]0.177 in
Maximum Working Height [Max]4.5 mm
Minimum Working Height [Min]3.1 mm
Minimum Working Height [Min]0.122 in
Mounting TypeSurface Mount
Operating Force - Initial10 gf
Operating Force - Mid Compression60 gf
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pad Layout Dimension [custom]1.83 mm
Pad Layout Dimension [custom]0.072 in
Plunger Size [diameter]0.042 in
Plunger Size [diameter]1.07 mm
Recommended Working Height3.8 mm
Recommended Working Height0.15 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.36
10$ 1.04
25$ 0.94
50$ 0.86
100$ 0.80
250$ 0.72
500$ 0.67
Digi-Reel® 1$ 1.36
10$ 1.04
25$ 0.94
50$ 0.86
100$ 0.80
250$ 0.72
500$ 0.67
Tape & Reel (TR) 1500$ 0.60
3000$ 0.56
4500$ 0.54
7500$ 0.51
10500$ 0.49
15000$ 0.48

Description

General part information

0900-1 Series

Contact Spring Surface Mount

Documents

Technical documentation and resources

No documents available
