184A025-192L011

Obsolete

MH Connectors

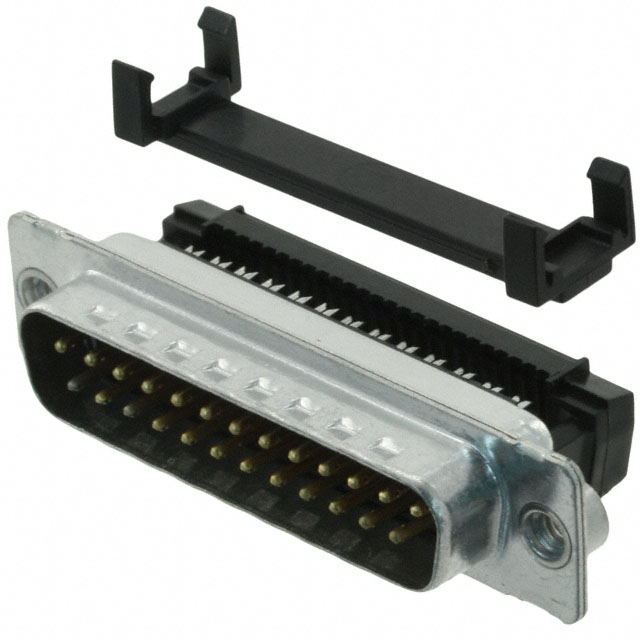

CONN D-SUB PLUG 25P PNL MNT IDC

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB PLUG 25P PNL MNT IDC

Technical Specifications

Parameters and characteristics for this part

Specification	184A025-192L011

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	1.5 A
Dielectric Material	Polyester, Glass Filled
Features	Strain Relief, Grounding Indents, Feed Through
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable
Wire Gauge	28 AWG

Part	Material Flammability Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Wire Gauge	Color	Contact Type	Number of Rows	Contact Finish	Contact Material	Flange Feature	Contact Finish Thickness	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Connector Type	Features
MH Connectors 184A025-192L001	UL94 V-0	IDC Ribbon Cable	-55 °C	125 °C	Polyester Glass Filled	28 AWG	Black	Signal	2	Gold	Copper Alloy	Housing/Shell (Unthreaded)	Flash	1.5 A	B DB	3	D-Sub	Male Pins Plug	Feed Through Grounding Indents Strain Relief
MH Connectors 184A025-192L011	UL94 V-0	IDC Ribbon Cable	-55 °C	125 °C	Polyester Glass Filled	28 AWG	Black	Signal	2	Gold	Copper Alloy	Cable Side	Flash	1.5 A	B DB	3	D-Sub	Male Pins Plug	Feed Through Grounding Indents Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 Position D-Sub Plug, Male Pins Connector
