794120-1
ActiveTE Connectivity AMP Connectors

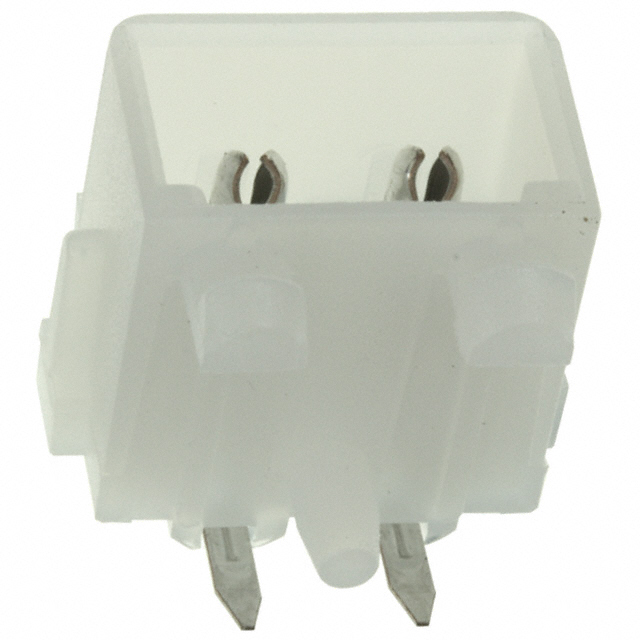

CONN HEADER R/A 2POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794120-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 2POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794120-1 | 794120 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post [x] | 3.56 mm | 3.56 mm |
| Contact Length - Post [x] | 0.14 in | 0.14 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 12 A | 12 A |
| Fastening Type | Locking Ramp | Detent Lock, Locking Ramp |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Insulation Color | Natural | Natural |
| Insulation Height [z] | 8.76 mm | 8.76 mm |
| Insulation Height [z] | 0.345 " | 0.345 " |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 | UL94 V-0, UL94 V-2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 2 | 2 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 5.08 mm | 5.08 mm |
| Pitch - Mating | 0.2 in | 0.2 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
794120 Series
CONN HEADER R/A 2POS 5.08MM
| Part | Voltage Rating | Number of Positions | Pitch - Mating | Pitch - Mating | Shrouding | Contact Type | Number of Rows | Applications | Connector Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height [z] | Insulation Height [z] | Termination | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Style | Contact Material | Number of Positions Loaded | Current Rating (Amps) | Mounting Type | Features | Contact Finish - Post | Material Flammability Rating | Insulation Color | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794120-2 | 250 VAC | 2 | 5.08 mm | 0.2 in | Shrouded - 4 Wall | Male Pin | 1 | General Purpose | Header | Detent Lock | 105 ░C | -55 °C | 8.76 mm | 0.345 " | Solder | Circular | 3.56 mm | 0.14 in | Board to Cable/Wire | Copper Alloy | All | 12 A | Through Hole, Right Angle | Board Guide, Board Lock | Tin | UL94 V-0 | Natural | Nylon, Polyamide (PA) |
TE Connectivity AMP Connectors 794120-1 | 250 VAC | 2 | 5.08 mm | 0.2 in | Shrouded - 4 Wall | Male Pin | 1 | General Purpose | Header | Locking Ramp | 105 ░C | -55 °C | 8.76 mm | 0.345 " | Solder | Circular | 3.56 mm | 0.14 in | Board to Cable/Wire | Copper Alloy | All | 12 A | Through Hole, Right Angle | Board Guide, Board Lock | Tin | UL94 V-2 | Natural | Nylon, Polyamide (PA) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.13 | |
| 10 | $ 2.66 | |||
| 100 | $ 2.26 | |||
| 500 | $ 2.01 | |||
| 1000 | $ 1.92 | |||
| 5000 | $ 1.71 | |||
Description
General part information
794120 Series
Connector Header Through Hole, Right Angle 2 position 0.200" (5.08mm)
